Air Inlet Grille Panel Extension Replacement

GM5376392

Courtesy of GENERAL MOTORS COMPANY

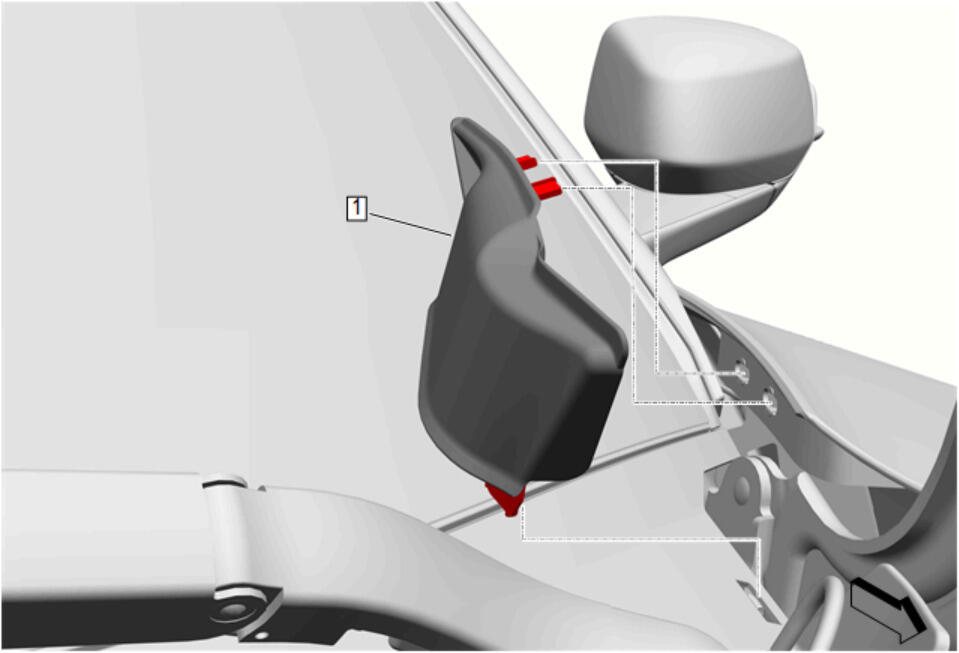

Callout

Component Name

1

Air Inlet Grille Panel Extension

NOTE:

Some components not shown for graphic clarity.

Procedure

Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
Using a suitable flat bladed plastic tool, release the air inlet grille panel extension from the air inlet grille panel extension clips.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.
