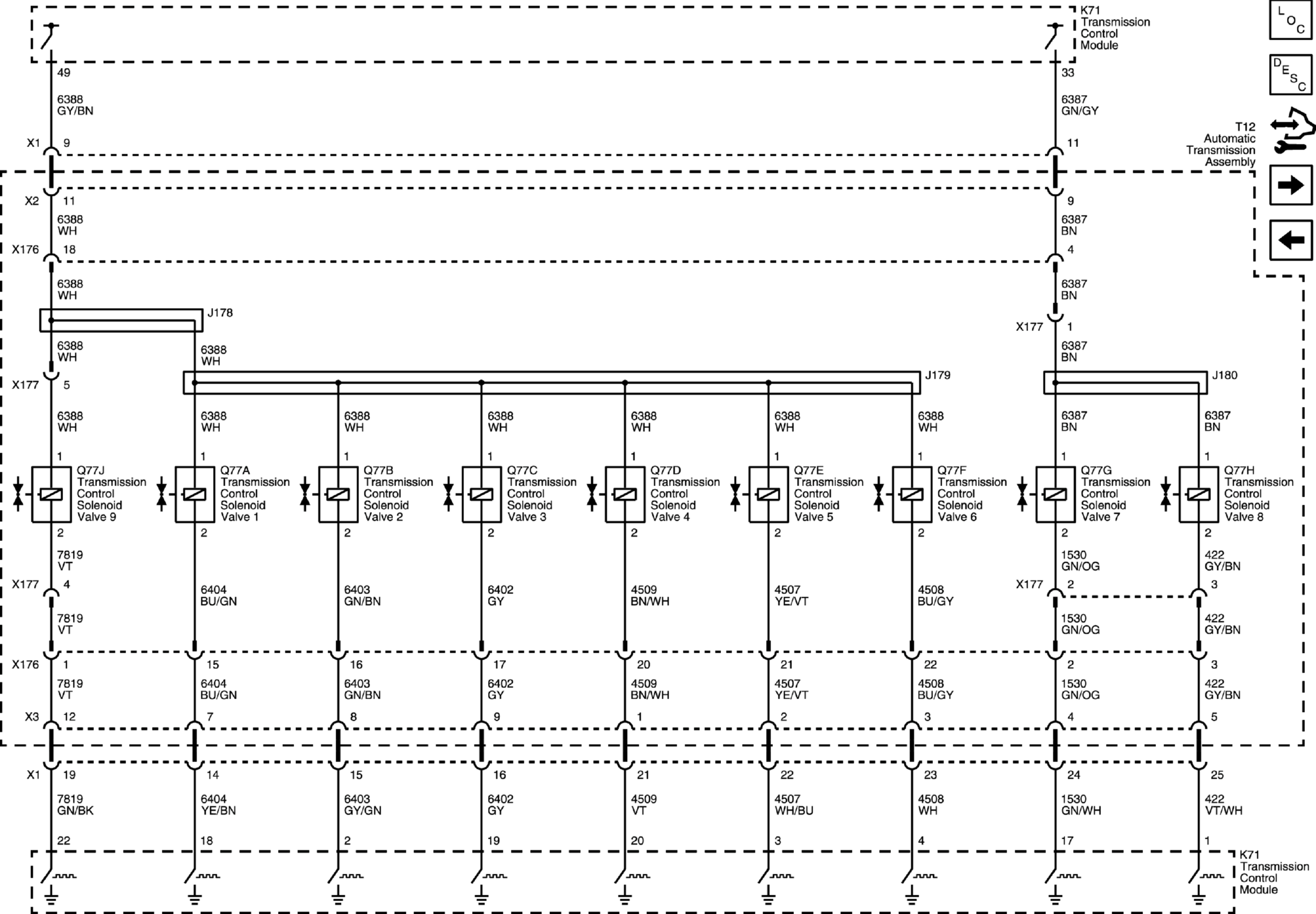

Home >> Chevrolet >> 2020 >> Camaro SS, 2D Coupe, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 10L60 (Mi1), 10L80 (Mi2) Or 10L90 (Mi4) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Pressure and Shift Controls
