Installation Procedure

  1. GM4537783Courtesy of GENERAL MOTORS COMPANY

    Install the transmission housing sound insulator (2) to the vehicle.

  2. Install the 3 NEW transmission housing sound insulator retaining clips (1) to the transmission.

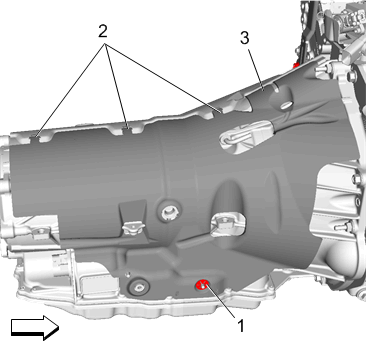

  3. GM4537778Courtesy of GENERAL MOTORS COMPANY

    Install the NEW transmission housing sound insulator retaining clip (1) to the transmission.

  4. GM5081886Courtesy of GENERAL MOTORS COMPANY

    Install the transmission vent hose. (2) Transmission Vent Hose Replacement (LT1 or LT4) , or Transmission Vent Hose Replacement (LGX)
