Installation Procedure

  1. GM4974610Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission wiring harness (3). Control Valve Assembly and Transmission Wiring Harness Installation

  2. GM5208028Courtesy of GENERAL MOTORS COMPANY

    Install the control valve body (2) and the 7 NEW control valve body assembly bolts (1) in the transmission.

  3. Fig 1: Identifying Control Valve Body Assembly Bolts With Tightening Sequence
    GM5088956Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the 7 bolts (1, 2, 3).

  4. Tighten in the sequence shown, refer to Control Valve Assembly and Transmission Wiring Harness Installation .
  5. Connect the transmission control wiring harness to the control valve body.

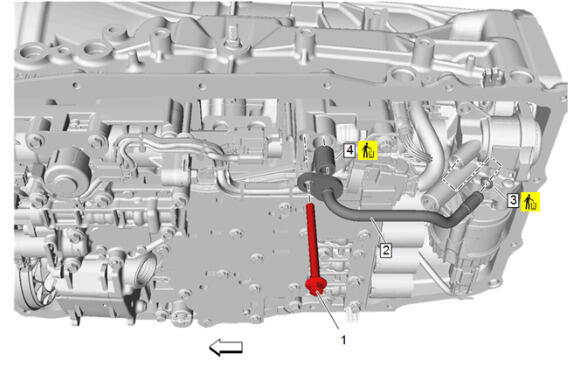

  6. GM5208014Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission auxiliary fluid pump outlet pipe (2).

  7. Fig 2: Exploded View Of Transmission Fluid Pan, Bolts, Filter And Gasket Components
    GM4540404Courtesy of GENERAL MOTORS COMPANY

    Install the transmission fluid filter (6) and fluid pan assembly. Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

  8. Perform the solenoid valve characterization reprogramming procedure. Q77 Transmission Control Solenoid Valve Characterization Programming (10Lxx)
