Instrument Panel Airbag Arming Status Display Replacement (Coupe)

Courtesy of GENERAL MOTORS COMPANY

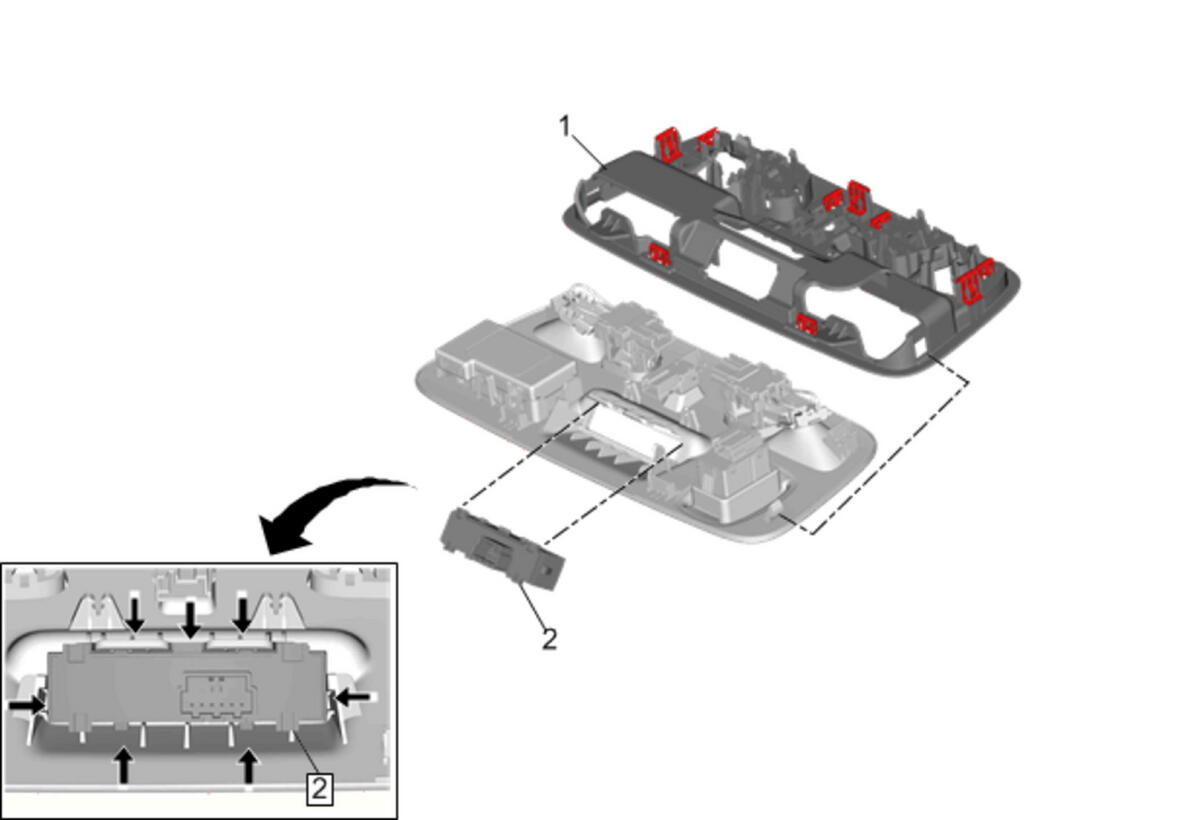

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Overhead Console Backplate Procedure  Release the backplate from the overhead console by depressing the tabs along each side.
2	Instrument Panel Airbag Arming Status Display Assembly Procedure  Release the switch from the underside of the roof console by depressing the tabs along each side of the switch.
