Sun Load Temperature and Ambient Light and Security Indicator Sensor Replacement

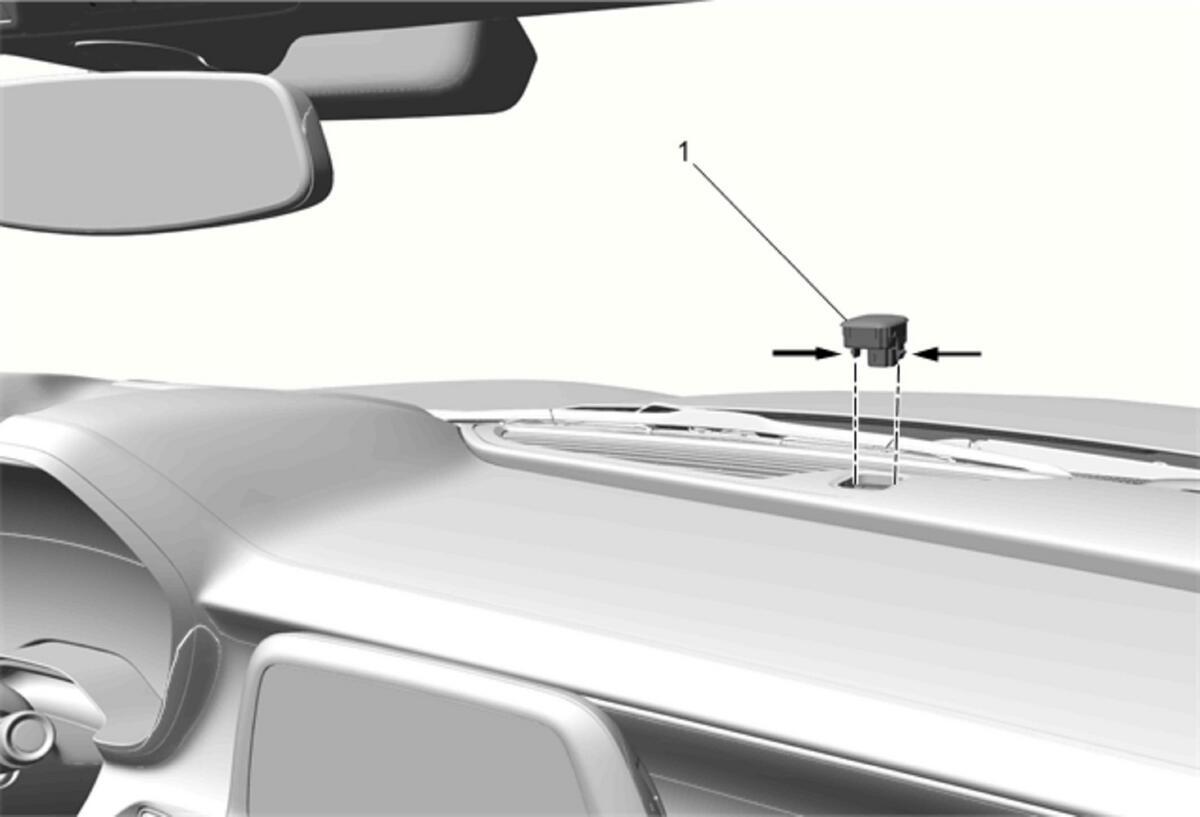

GM4199394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Sun Load Temperature and Ambient Light and Security Indicator Sensor

Procedure

  1. Depress the sunload temperature and ambient light and security indicator sensor assembly tabs indicated by the arrow to remove valance panel.
  2. Disconnect the electrical connector.
