Engine Coolant Air Bleed Pipe Removal

WARNING: This page is about a different variant/trim than selected.

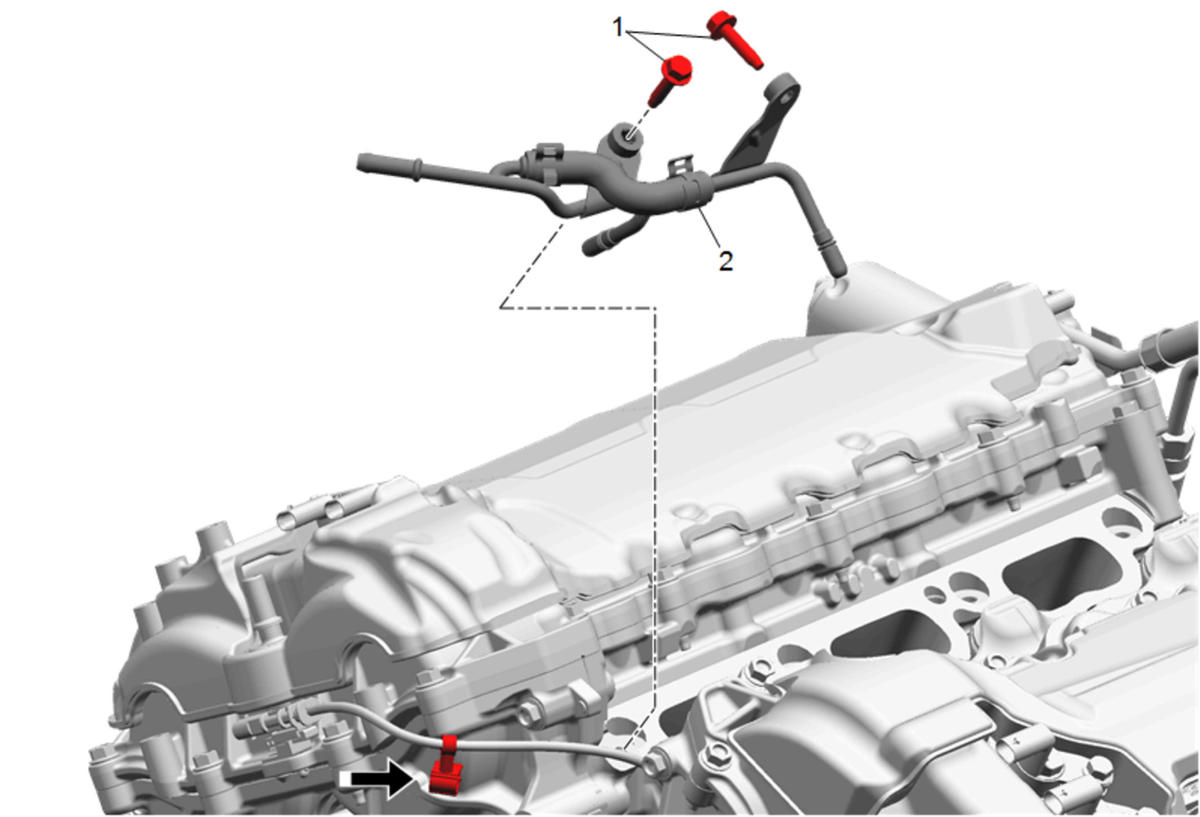

GM5131589Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Air Bleed Pipe Removal

Callout Component Name
1 Engine Coolant Air Bleed Pipe Bolt [2x]
2 Engine Coolant Air Bleed Pipe
Procedure
Disconnect pipe from retainer on the engine coolant temperature sensor wire.
