Fuel Feed and Fuel Feed Intermediate Pipe Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

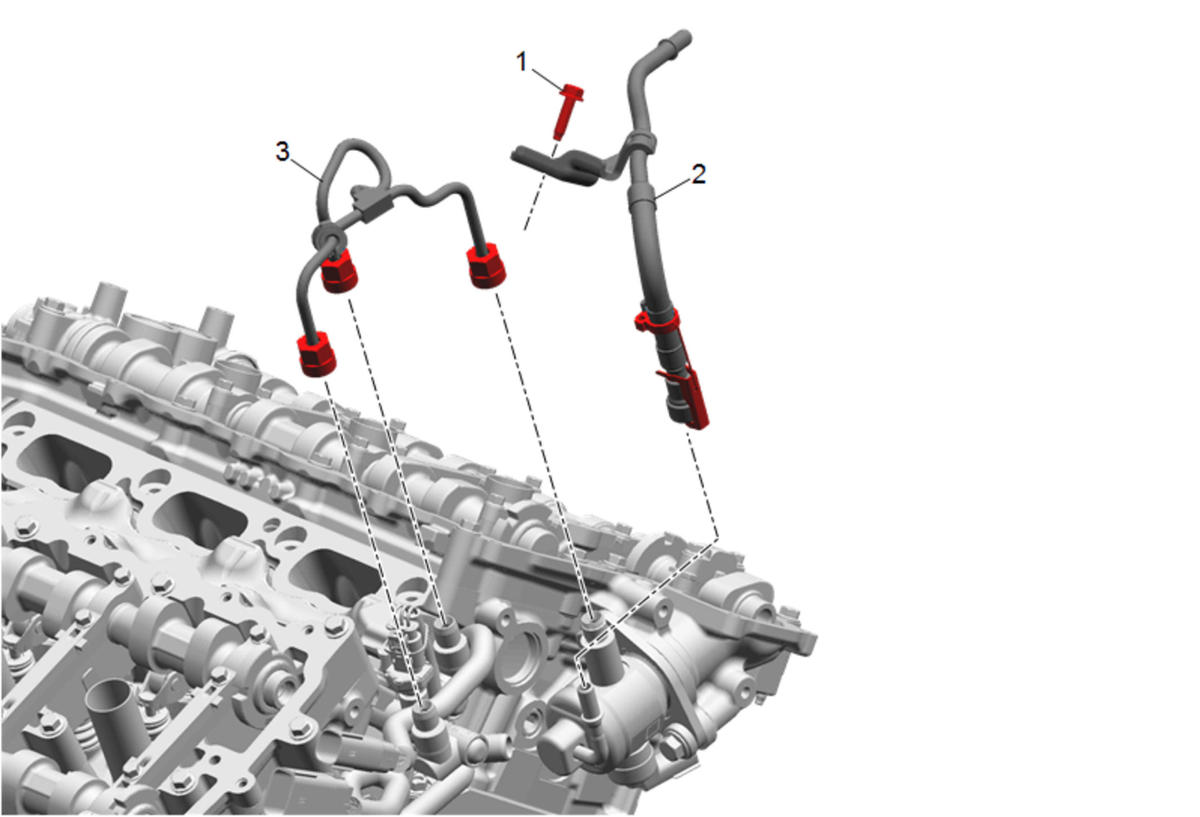

Fuel Feed and Fuel Feed Intermediate Pipe Removal
| Callout |
Component Name |
| 1 |
Fuel Feed Pipe Bolt
NOTE:
This is a camshaft cover bolt.
|
| 2 |
Fuel Feed Pipe
NOTE:
This may be left in the vehicle when engine is removed.
|
| 3 |
Fuel Feed Intermediate Pipe
Procedure
Remove and DISCARD the pipe. |
