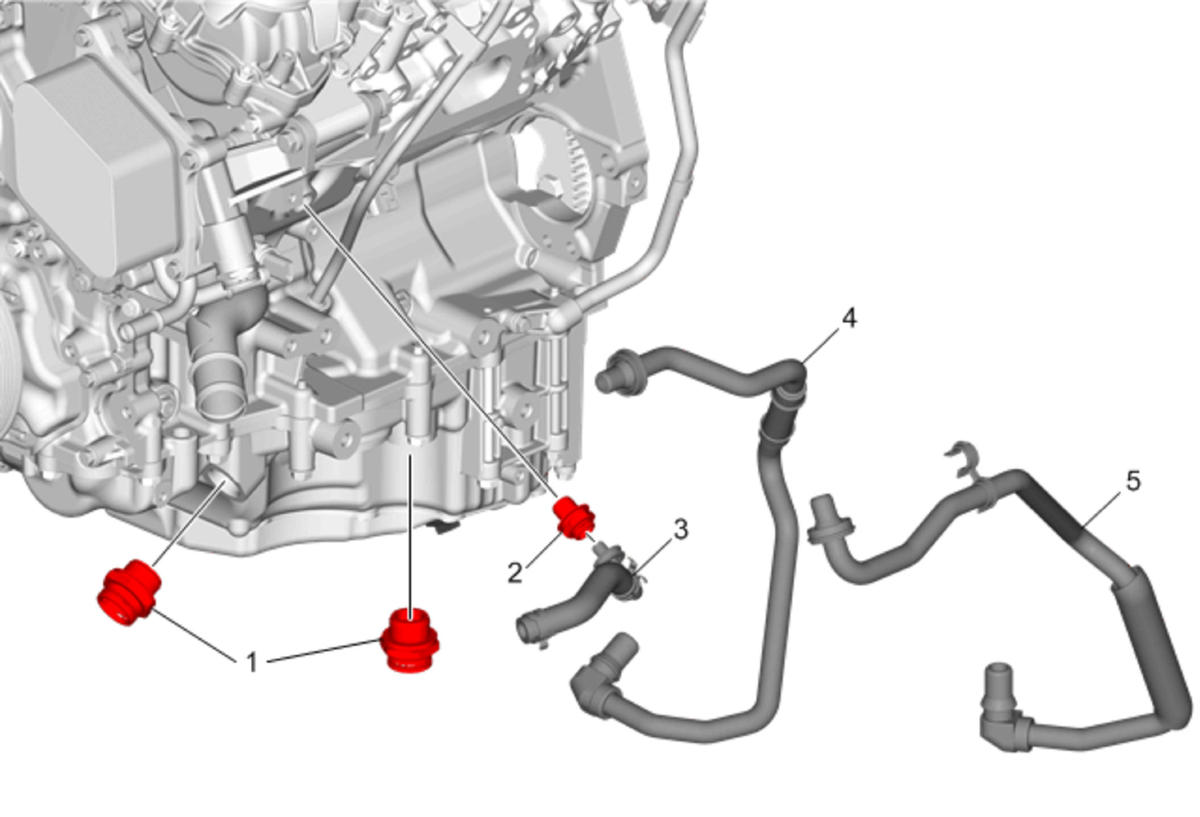

Engine Oil Cooler Pipes and Fittings Installation

Refer to Fastener Caution .

When installing the fitting, first remove the oil filter. When torquing the fitting, use a standard or thin wall socket (not an impact socket) in order to prevent the wall of the socket from contacting the oil pan. Contact between the socket and filter or pan would reduce the torque applied to fitting, potentially resulting in a loose fitting.
