Camshaft Position Actuator Control Valve and Belt Idler Pulley Removal
WARNING: This page is about a different variant/trim than selected.

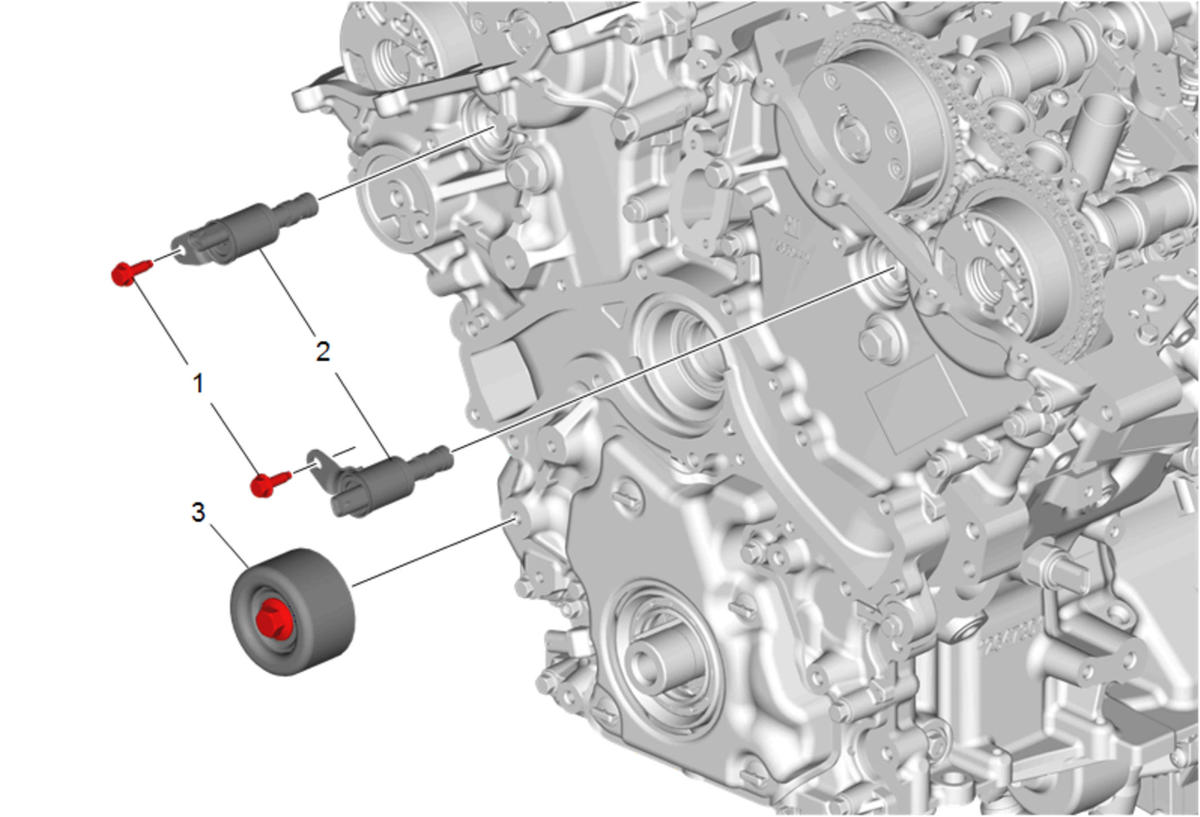

Camshaft Position Actuator Control Valve and Belt Idler Pulley Removal
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Control Valve Bolt [2x] |
| 2 | Camshaft Position Actuator Control Valve [2x]
CAUTION:
The camshaft position actuator valves must be removed from the front cover prior to front cover removal or damage to the valves may occur. |
| 3 | Belt Idler Pulley - Model Dependent |
