Camshaft Position Actuator Control Valve and Belt Idler Pulley Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

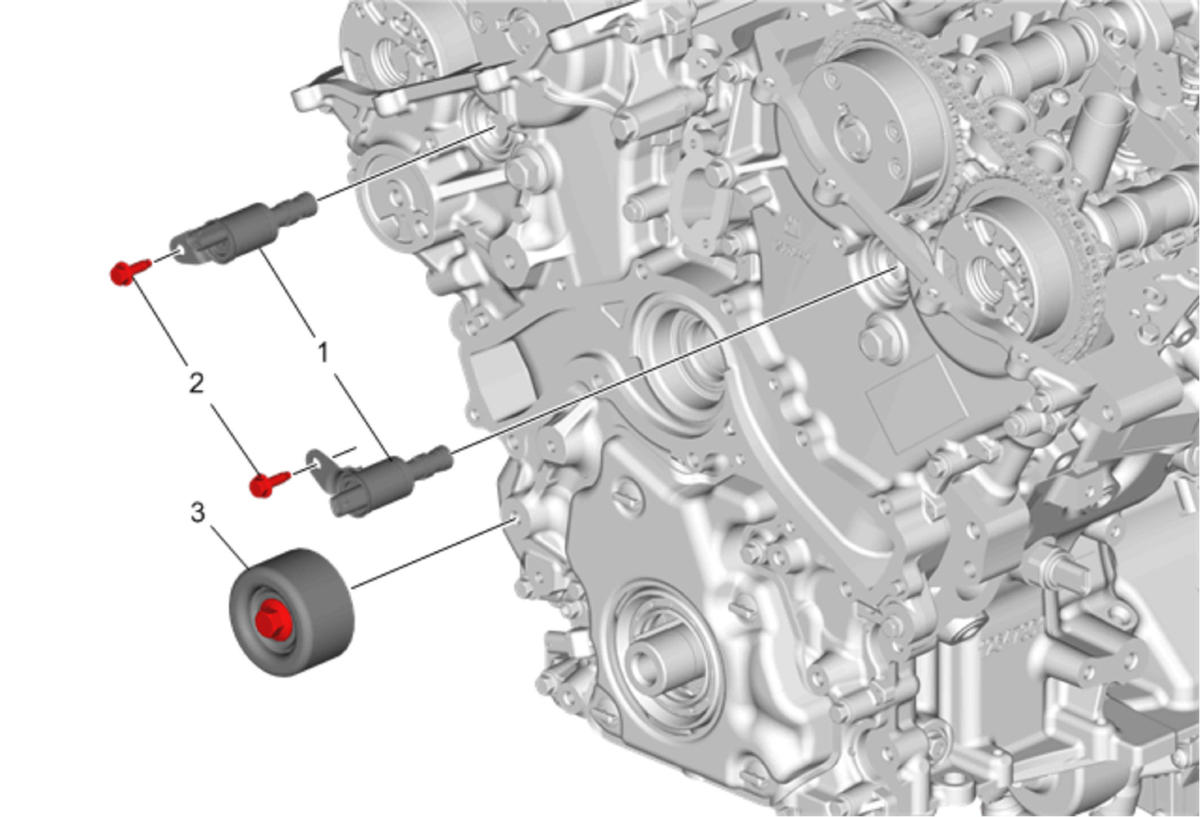

Camshaft Position Actuator Control Valve and Belt Idler Pulley Installation
| Callout |
Component Name |
| 1 |
Camshaft Position Actuator Control Valve [2x] |
| 2 |
Camshaft Position Actuator Control Valve Bolt [2x]
Tighten
10 N.m (89 lb in) |
| 3 |
Belt Idler Pulley - Model Dependent
Tighten
10 N.m (89 lb in) |
