Crankshaft Rear Oil Seal and Housing Removal

WARNING: This page is about a different variant/trim than selected.

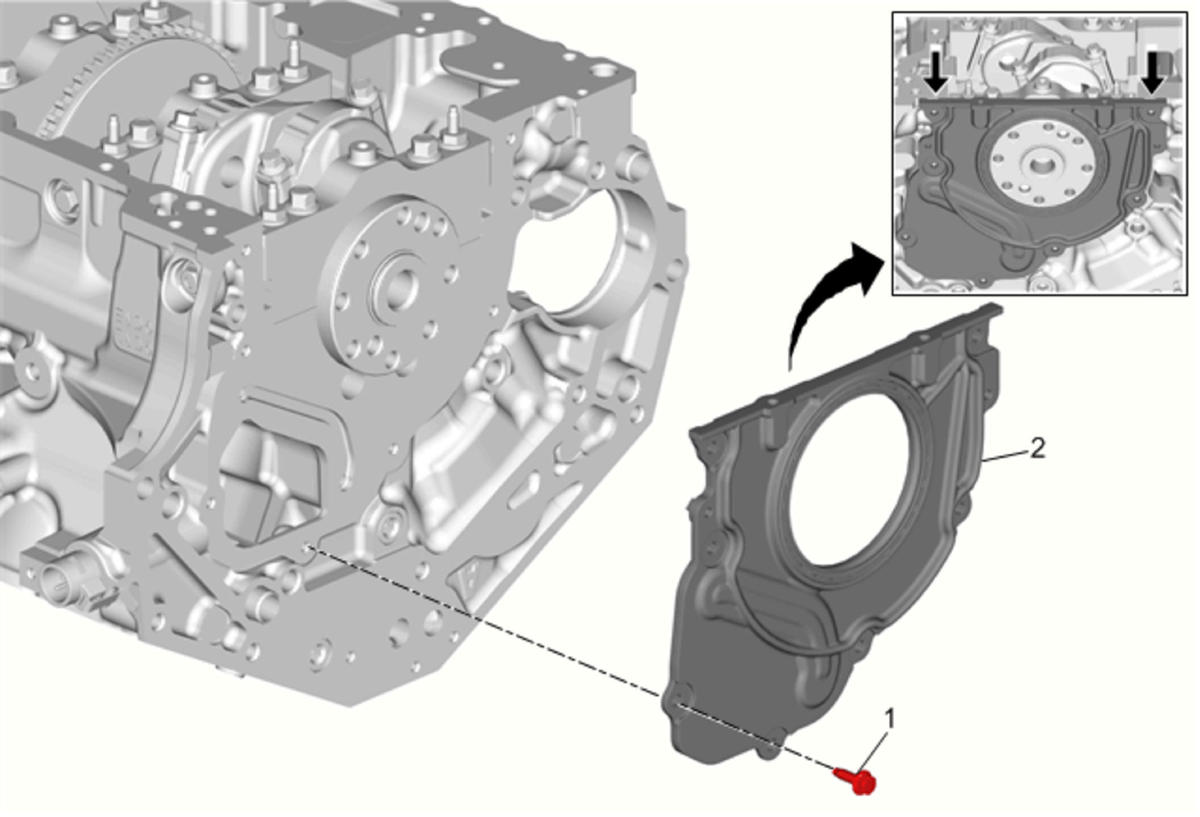

GM3952531Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Crankshaft Rear Oil Seal Housing Bolt [7x]
2 Crankshaft Rear Oil Seal Housing

Procedure

  1. Use Pry points located at the edge of the crankshaft rear oil seal housing to separate the RTV sealant.
  2. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
  3. Remove and DISCARD the crankshaft rear oil seal housing.
