Camshaft Position Actuator Removal - Bank 2
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

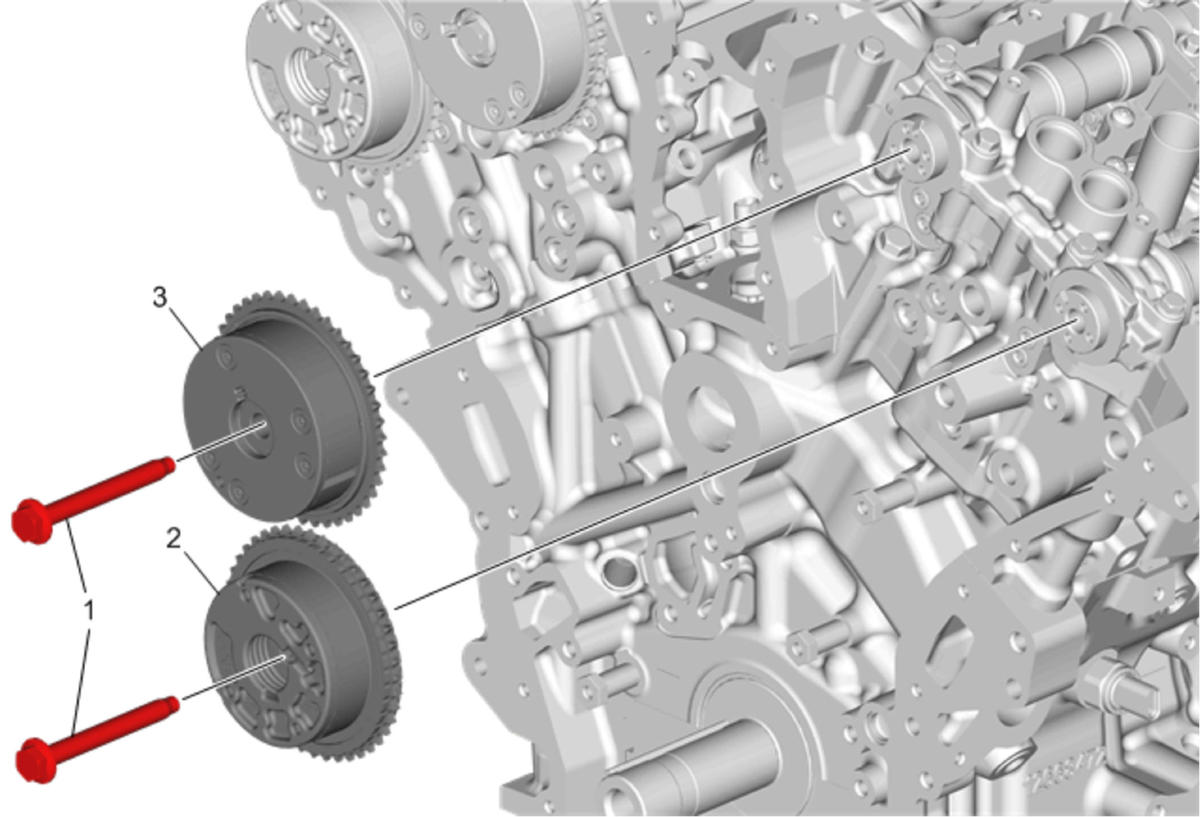

| Callout |
Component Name |
| 1 |
Camshaft Position Actuator Bolt [2x] |
| 2 |
Exhaust Camshaft Position Actuator Bank 2 |
| 3 |
Intake Camshaft Position Actuator Bank 2 |
