Camshaft Position Actuator Installation - Bank 1

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

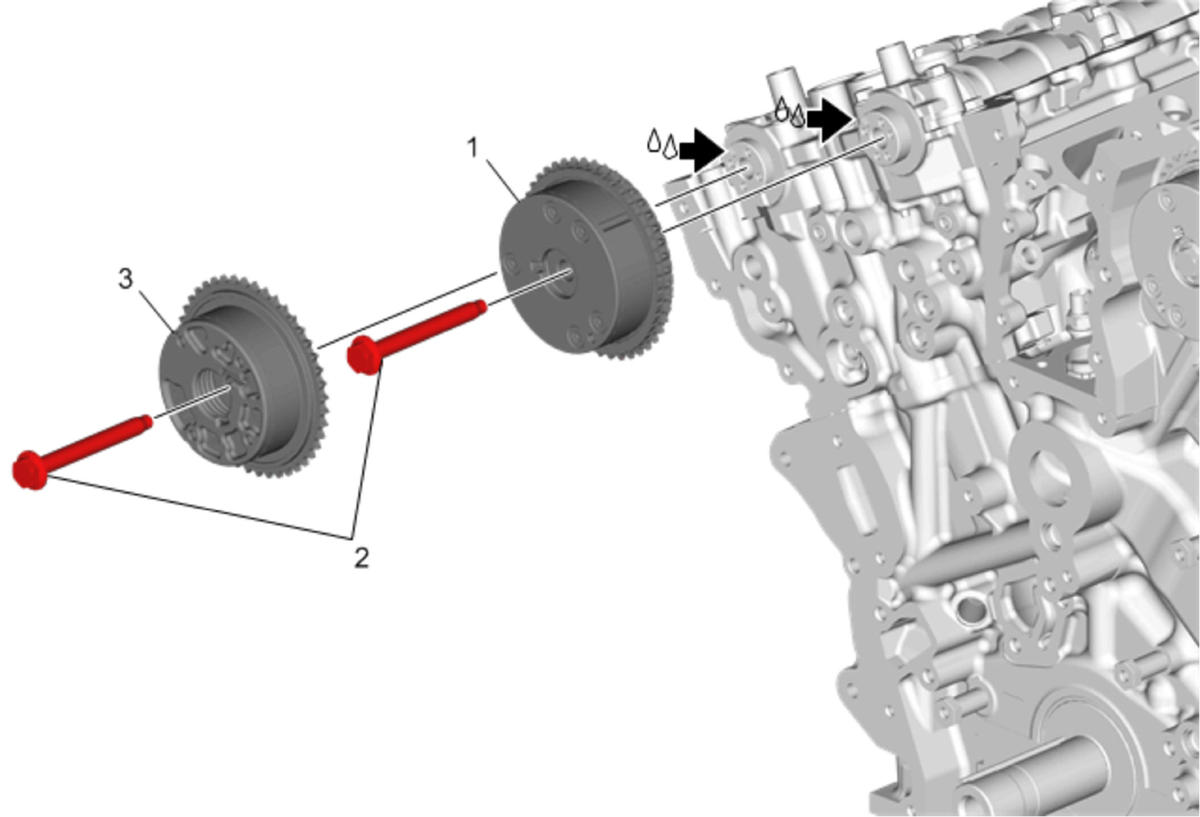

Callout	Component Name
1	Exhaust Camshaft Position Actuator Bank 1 CAUTION: Ensure the proper camshaft position actuator is installed in the correct position. Failure to install the proper camshaft position actuator can effect engine performance and set an engine code. CAUTION: Refer to Torque Reaction Against Timing Drive Chain Caution . Procedure Use an open wrench on the hex cast into the camshaft in order to prevent camshaft rotation when tightening the camshaft position actuator bolt. Apply a liberal amount of lubricant to the back of the camshaft position actuator and front of the camshaft bearing cap. Adhesives, Fluids, Lubricants, and Sealers
2	Camshaft Position Actuator Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten First Pass: 20 N.m (15 lb ft) Final Pass: 45 degrees
3	Intake Camshaft Position Actuator Bank 1 Procedure Use an open wrench on the hex cast into the camshaft in order to prevent camshaft rotation when tightening the camshaft position actuator bolt. Apply a liberal amount of lubricant to the back of the camshaft position actuator and front of the camshaft bearing cap. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Exhaust Camshaft Position Actuator Bank 1

CAUTION:

Ensure the proper camshaft position actuator is installed in the correct position. Failure to install the proper camshaft position actuator can effect engine performance and set an engine code.

CAUTION:

Refer to Torque Reaction Against Timing Drive Chain Caution .

Procedure

Use an open wrench on the hex cast into the camshaft in order to prevent camshaft rotation when tightening the camshaft position actuator bolt.
Apply a liberal amount of lubricant to the back of the camshaft position actuator and front of the camshaft bearing cap. Adhesives, Fluids, Lubricants, and Sealers

Camshaft Position Actuator Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten

First Pass: 20 N.m (15 lb ft)
Final Pass: 45 degrees

Intake Camshaft Position Actuator Bank 1

Procedure

Use an open wrench on the hex cast into the camshaft in order to prevent camshaft rotation when tightening the camshaft position actuator bolt.
Apply a liberal amount of lubricant to the back of the camshaft position actuator and front of the camshaft bearing cap. Adhesives, Fluids, Lubricants, and Sealers
