Camshaft Cover and Seal Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

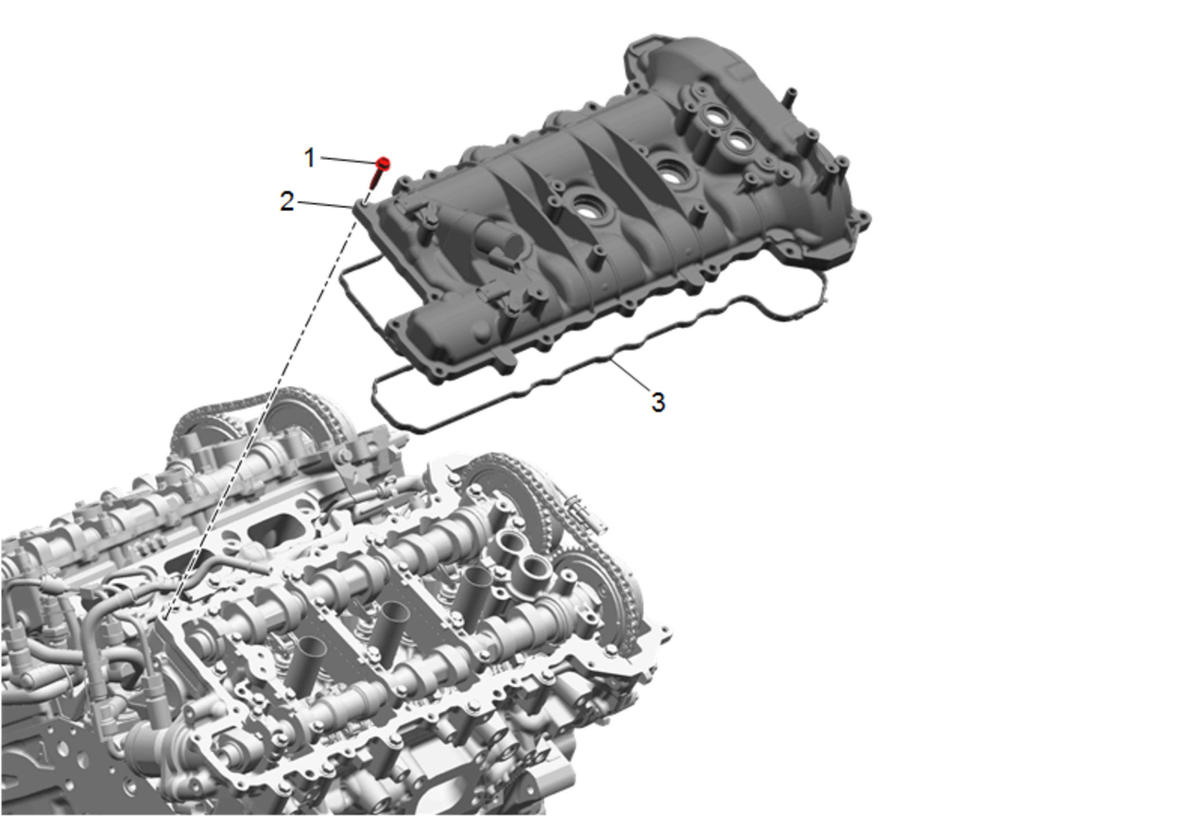

Camshaft Cover and Seal Removal
| Callout |
Component Name |
| 1 |
Camshaft Cover Bolt [18x] |
| 2 |
Camshaft Cover - Right Side |
| 3 |
Camshaft Cover Seal
Procedure
Remove and DISCARD the seal. |
