Oil Filler Cap and Tube Removal

WARNING: This page is about a different variant/trim than selected.

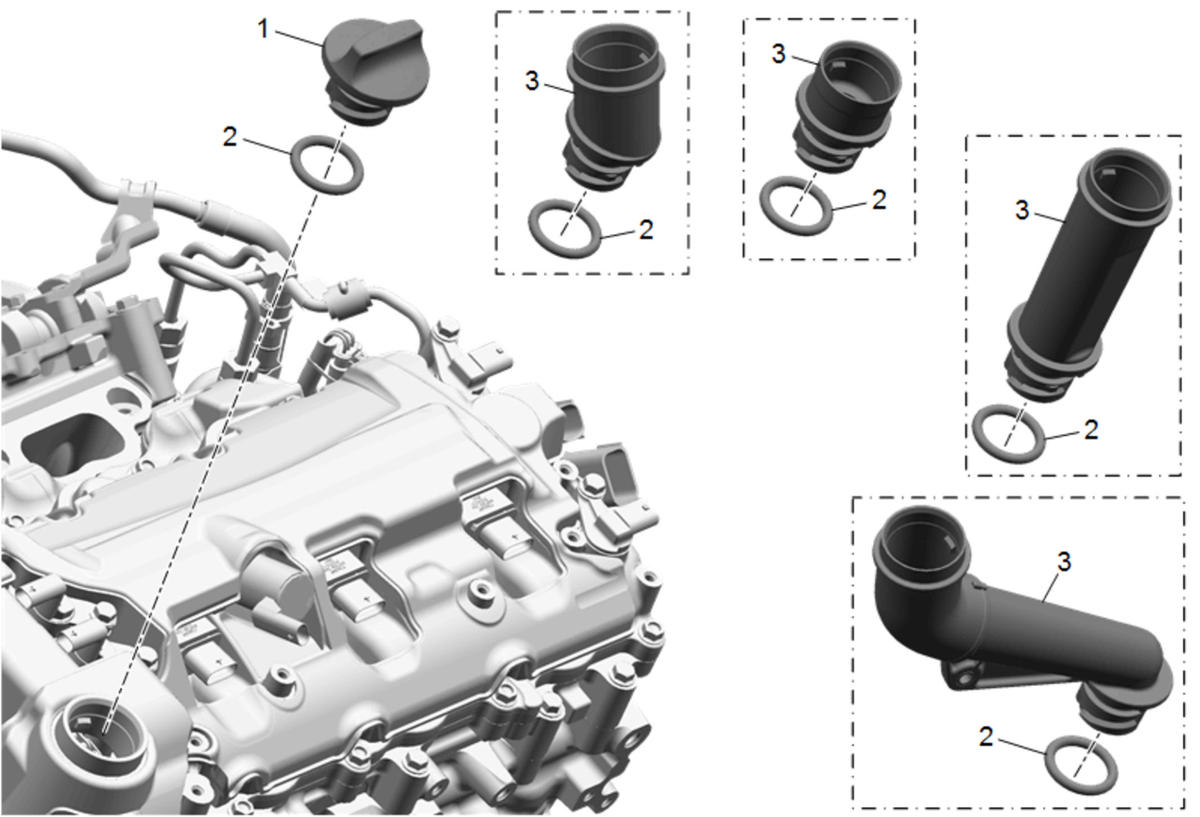

GM5132367Courtesy of GENERAL MOTORS COMPANY
Oil Filler Cap and Tube Removal

Callout Component Name
1 Oil Filler Cap
2 Oil Filler Cap Seal
Procedure
Remove and DISCARD the seal.
3 Oil Filler Cap Tube - Model Dependent
