Camshaft Housing Cover Insulator and Camshaft Position Actuator Solenoid Valve Installation
WARNING: This page is about a different variant/trim than selected.

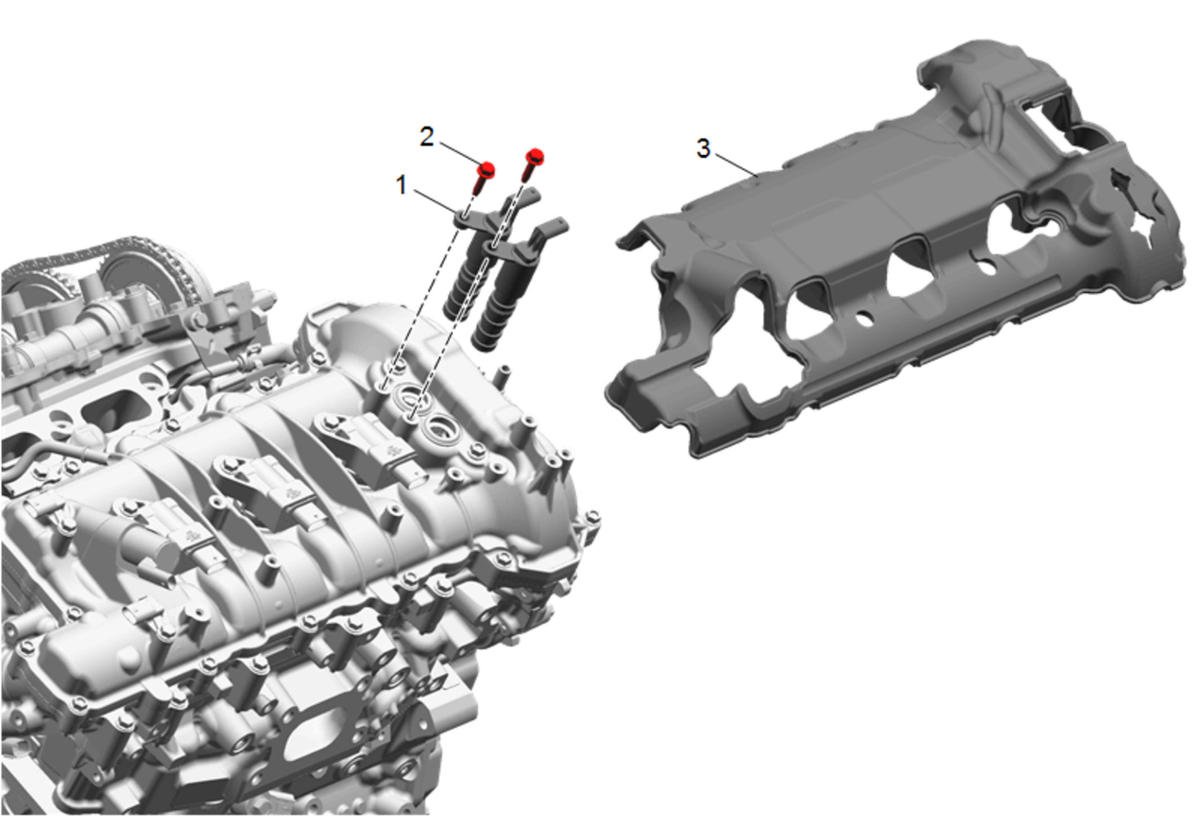

Camshaft Housing Cover Insulator and Camshaft Position Actuator Solenoid Valve Installation
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve [2x] |
| 2 | Camshaft Position Actuator Solenoid Valve Bolt [2x] Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Housing Cover Insulator- Right Side
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
