Oil Filler Cap and Tube Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

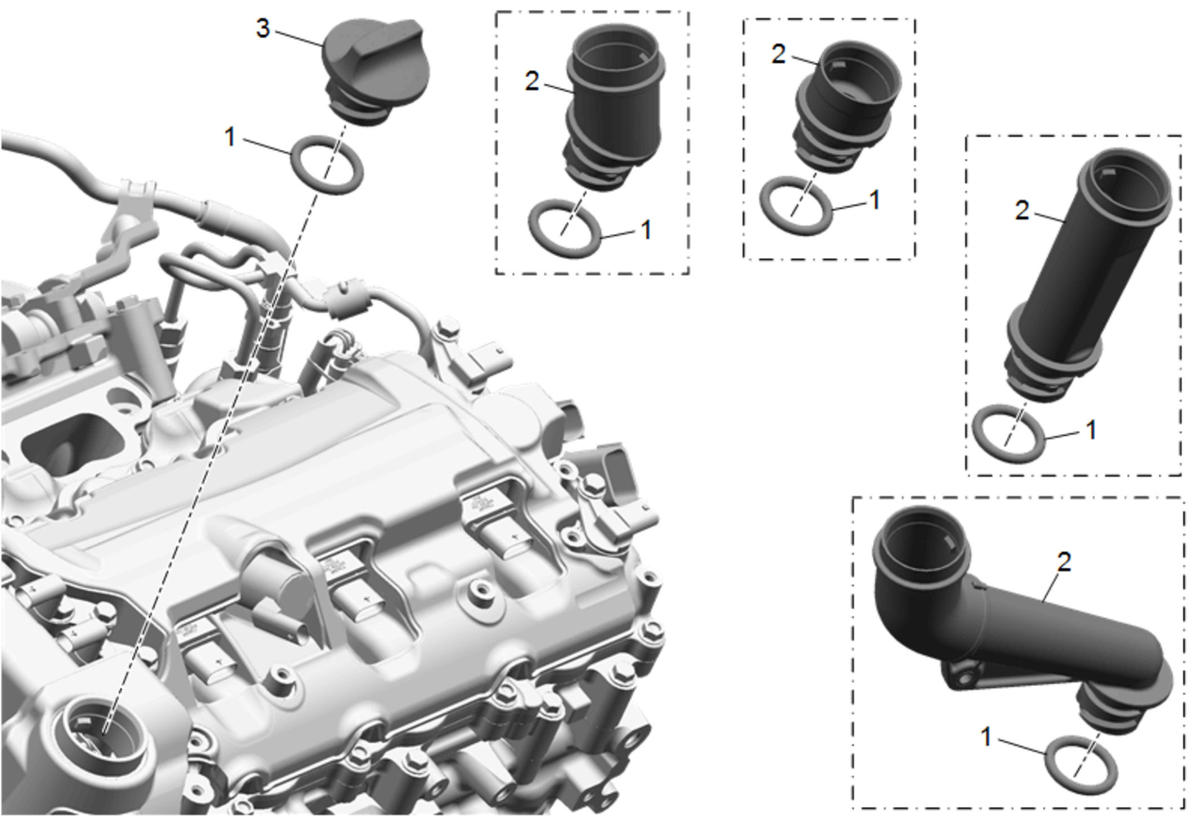

Oil Filler Cap and Tube Installation
| Callout |
Component Name |
| 1 |
Oil Filler Cap Tube Seal
Procedure
Install a NEW seal. |
| 2 |
Oil Filler Cap Tube - Model Dependent
Procedure
Install a NEW seal. |
| 3 |
Oil Filler Cap |
