Ignition Coil and Spark Plug Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

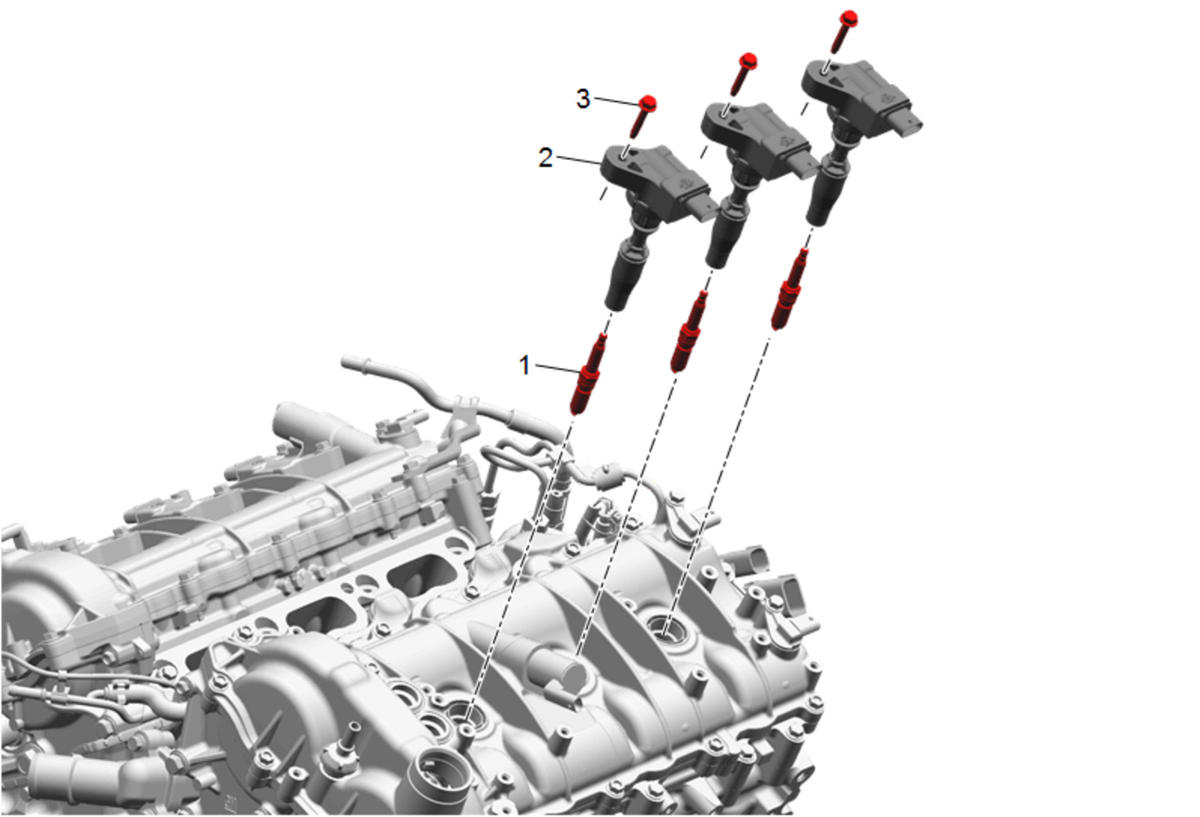

Callout	Component Name
1	Spark Plug [3x] Procedure Install the NEW spark plugs. Tighten 18 N.m (13 lb ft)
2	Ignition Coil [3x] Procedure Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, complete the following procedure: Apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.
3	Ignition Coil Bolt [3x] Tighten 10 N.m (89 lb in)

Callout

Component Name

Spark Plug [3x]
Procedure
Install the NEW spark plugs.
Tighten
18 N.m (13 lb ft)

Ignition Coil [3x]

Procedure

Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, complete the following procedure:
1. Apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers
2. Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.

Ignition Coil Bolt [3x]
Tighten
10 N.m (89 lb in)
