Section 36 (Automatic Transmission - 8L45 (M5T) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

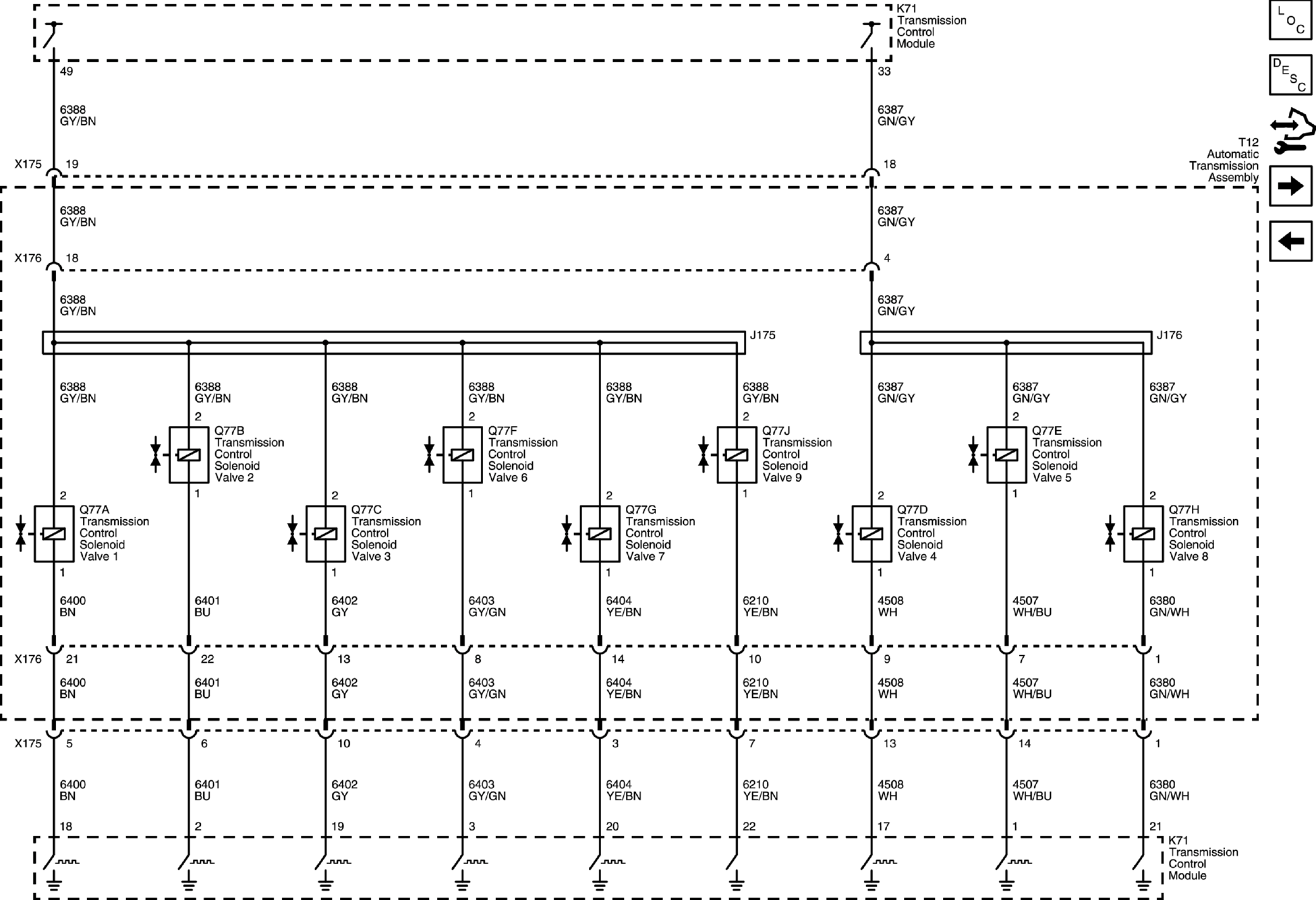

Pressure and Shift Controls
Pressure and Shift Controls
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
