Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Turbine Shaft Retaining Ring
- Turbine Shaft Seal
- Turbine Shaft Seal
- Turbine Shaft Fluid Seal Ring [4x]
- Turbine Shaft Fluid Seal Ring [3x]
- 1-3-5-6-7 Clutch Piston Dam Retaining Ring
- 1-3-5-6-7 Clutch Piston Dam Seal
- 1-3-5-6-7 Clutch Piston Seal- Inner
- 1-3-5-6-7 Clutch Piston Seal- Outer
Special Tools
- DT-26941 Bushing and Bearing Remover
- DT-38734 Intermediate Spring Compressor Adapter
- DT-45124 Removal Bridge
Equivalent regional tools: Special Tools
Turbine Shaft Retaining Ring (1) - Remove and DISCARD
- Turbine Shaft (2) - Remove
- Turbine Shaft Seal (3) - Remove and DISCARD
- Turbine Shaft Fluid Seal Ring (4) - Remove and DISCARD [4x]
- Turbine Shaft Fluid Seal Ring (5) - Remove and DISCARD [3x]
- Turbine Shaft Seal (6) - Remove and DISCARD
-
Use the DT-38734 Intermediate Spring Compressor Adapter (1) and a press to remove the 1-3-5-6-7 Clutch Piston Dam Retaining Ring (2).
- 1-3-5-6-7 Clutch Piston Dam Retaining Ring (2) - Remove and DISCARD
- 1-3-5-6-7 Clutch Piston Dam (3) - Remove
- 1-3-5-6-7 Clutch Piston Return Spring (4) - Remove
-
Courtesy of GENERAL MOTORS COMPANY

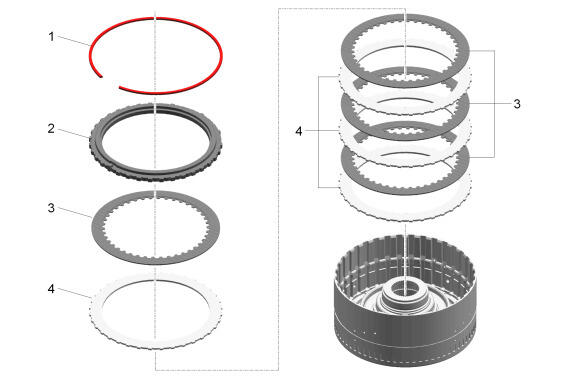

1-3-5-6-7 Clutch Backing Plate Retaining Ring (1) - Remove
- 1-3-5-6-7 Clutch Backing Plate (2) - Remove
- 1-3-5-6-7 Clutch Plate - Friction (3) - Remove [4x]
- 1-3-5-6-7 Clutch Plate (4) - Remove [4x]
-
1-3-5-6-7 Clutch Piston (1) - Remove
- 1-3-5-6-7 Clutch Piston Dam Seal (2) - Remove and DISCARD
- 1-3-5-6-7 Clutch Piston Seal- Inner (3) - Remove and DISCARD
- 1-3-5-6-7 Clutch Piston Seal- Outer (4) - Remove and DISCARD
Use the DT-26941 Bushing and Bearing Remover (1) & DT-45124 Removal Bridge (2) to remove the 1-3-5-6-7 Clutch Thrust Bearing (3).
- 1-3-5-6-7 Clutch Thrust Bearing (3) - Remove
CAUTION:
Refer to Seal Reuse Caution .
