1-2-7-8 Reverse Clutch Piston Installation

WARNING: This page is about a different variant/trim than selected.

Special Tools

Equivalent regional tools: Special Tools

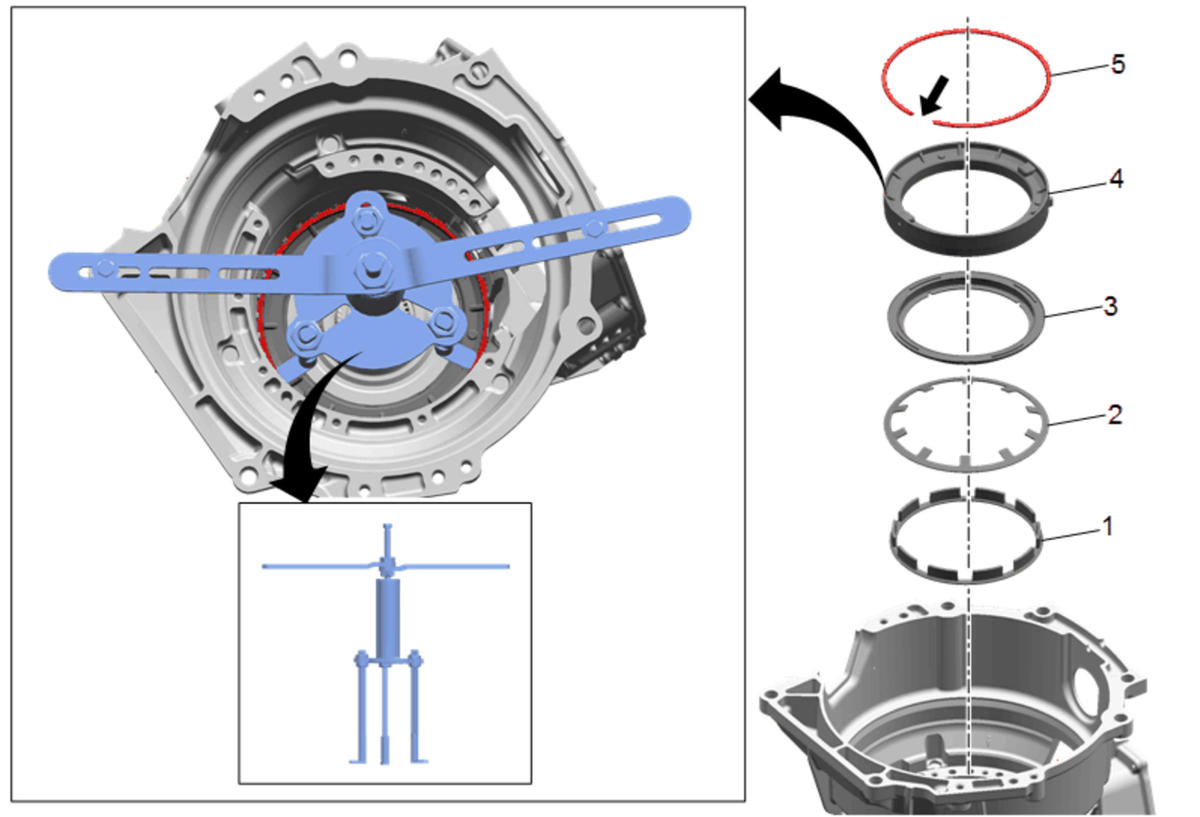

Fig 1: Exploded View Of 1-2-7-8 Reverse Clutch Piston Components
Courtesy of GENERAL MOTORS COMPANY

1-2-7-8-Reverse Clutch Apply Ring (1) - Install
1-2-7-8-Reverse Clutch Return Spring (2) - Install
1-2-7-8-Reverse Clutch Piston (3) - Install
1-2-7-8-Reverse Clutch Piston Housing (4) - Install
The opening of the retaining ring should be in the 9 o'clock position as indicated by the arrow.
Assemble special tools as shown to install retaining ring.
1-2-7-8-Reverse Clutch Piston Housing Retaining Ring (5) - Install
