Engine Coolant Temperature Sensor Replacement (LT1)

Courtesy of GENERAL MOTORS COMPANY

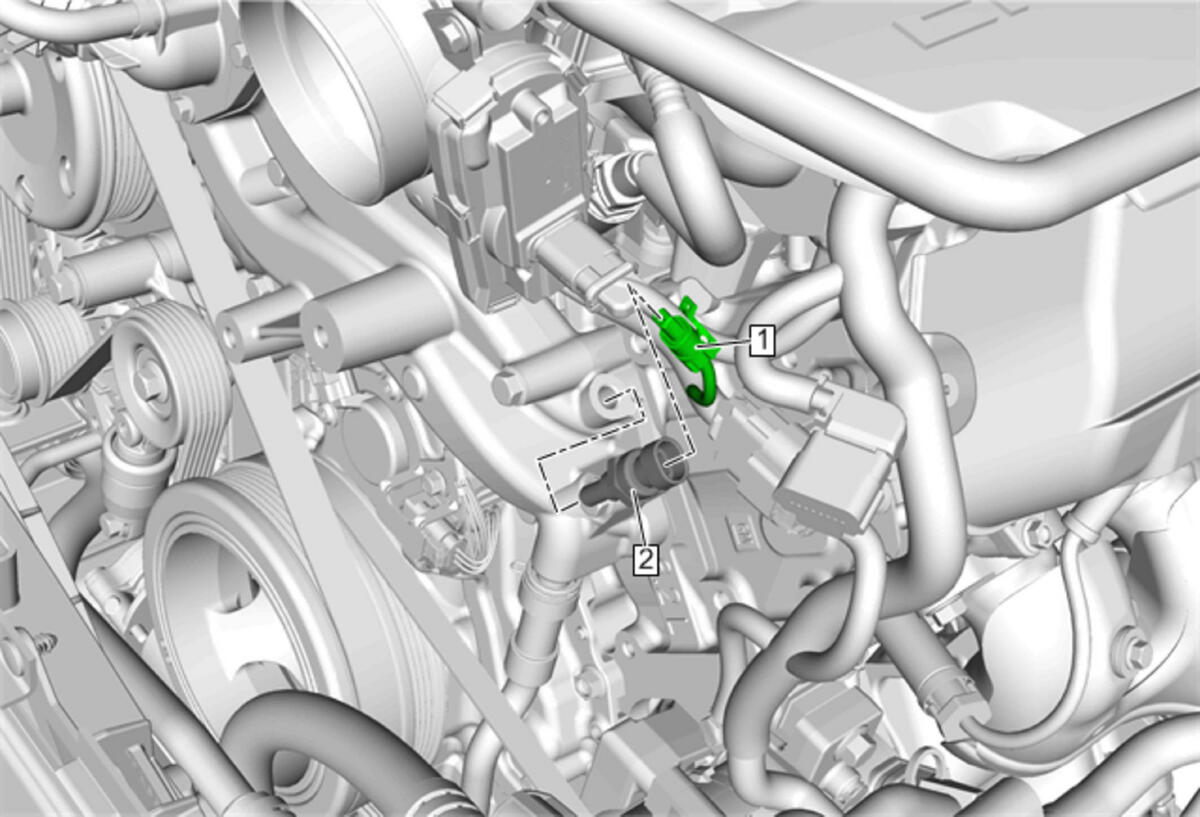

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Duct Replacement (LT1)
1	Electrical Connector
2	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten  22 N.m (16 lb ft)
