Water Pump Replacement (LT1, LT4)

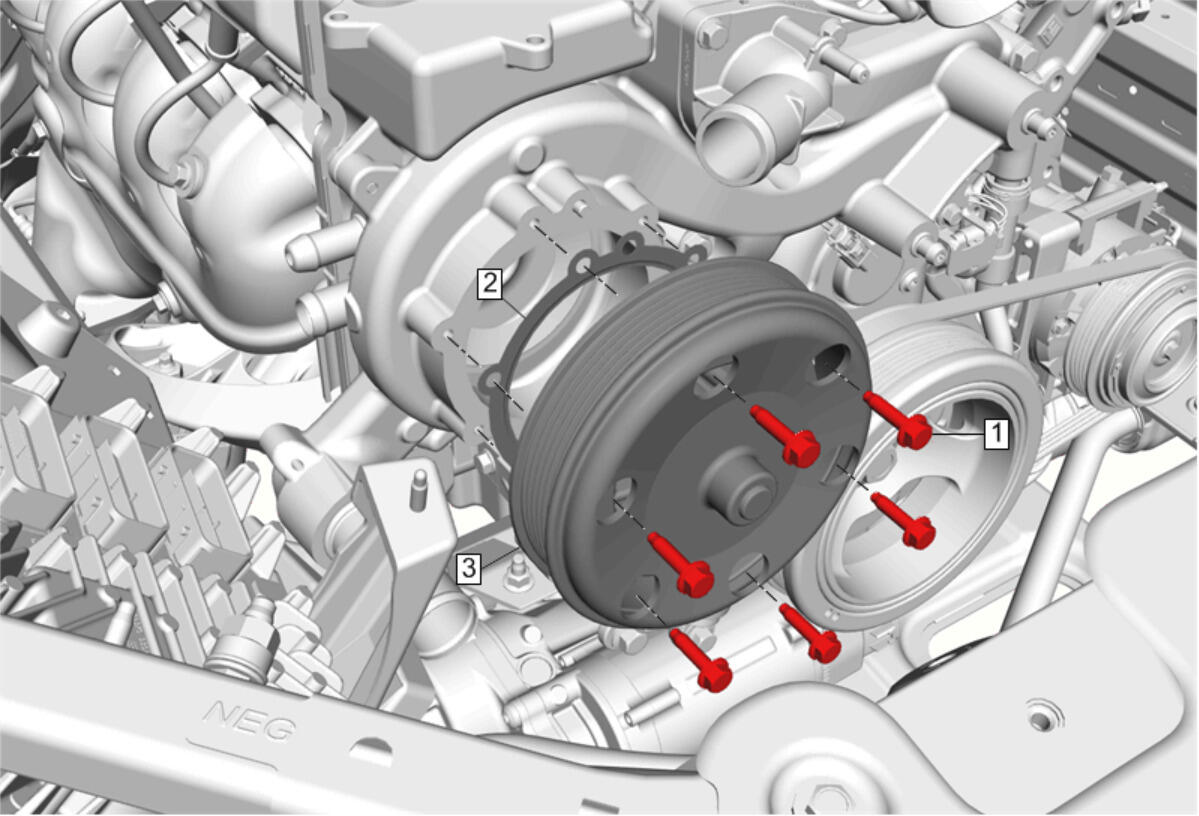

GM4183846Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
  2. Drive Belt Replacement - Accessory (LT1) , or Drive Belt Replacement - Accessory (LT4)
1 Water Pump Bolt [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Water Pump Gasket
Procedure
Install a NEW water pump gasket.
3 Water Pump
Procedure
Carefully clean the water pump sealing surfaces.
