Q15R Exhaust Flow Control Valve - Right
 Courtesy of GENERAL MOTORS COMPANY
|

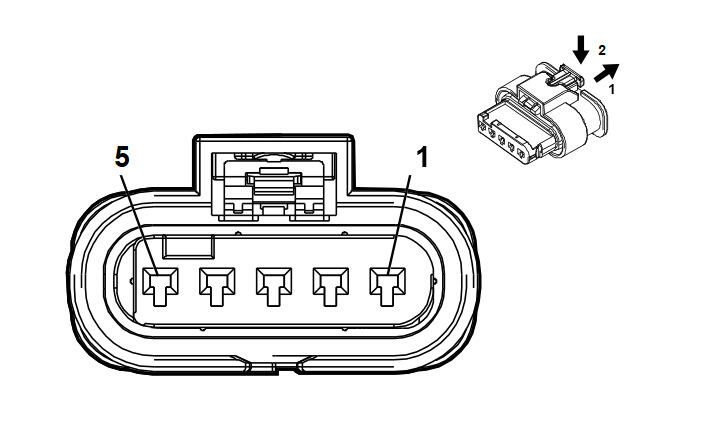

Connector Part Information
- Harness Type: Body
- OEM Connector: 13582075
- Service Connector: 19119351
- Description: 5-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
2450 |
Ground 24 |
I |
- |
| 2 |
0.5 |
GN/VT |
4316 |
Exhaust Flow Control Valve 2 |
I |
- |
| 3 |
0.5 |
WH |
9022 |
Cavity Seal |
I |
- |
| 4 |
1 |
VT/GY |
1039 |
Run/Crank Ignition 1 Voltage 10 |
I |
- |
| 5 |
0.5 |
WH |
9022 |
Cavity Seal |
I |
- |
