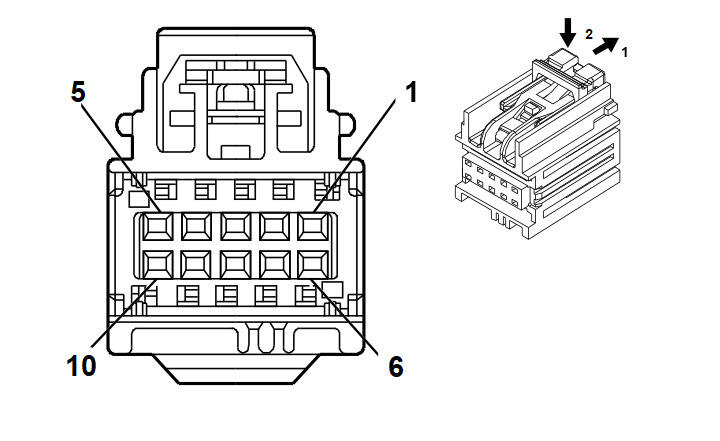

P17 Info Display Module X1 (IOS/IOT)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13509648
- Service Connector: 13509648
- Description: 10-Way F 0.64 YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/BU |
3240 |
Secondary Fused Battery Positive Voltage 32 |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY/GN |
1102 |
Low Speed GMLAN Serial Data 2 |
II |
- |
| 4 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
GN/WH |
7527 |
Human Machine Interface Control Module LIN Bus 1 |
II |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
BK/WH |
1551 |
Ground 15 |
I |
- |
