Sunroof Switch Replacement

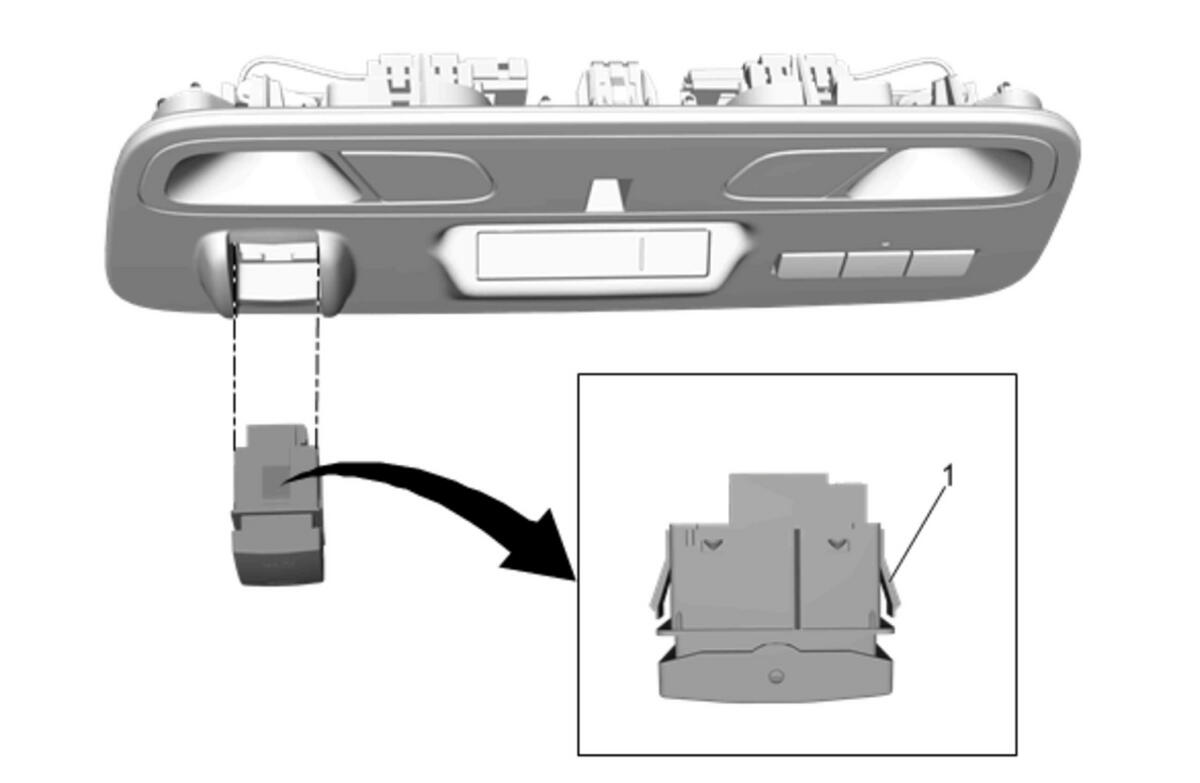

GM4180494Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Sunroof Switch
Procedure
Depress tabs on the switch to remove from roof console.
