Rear Seat Cushion Removal and Installation

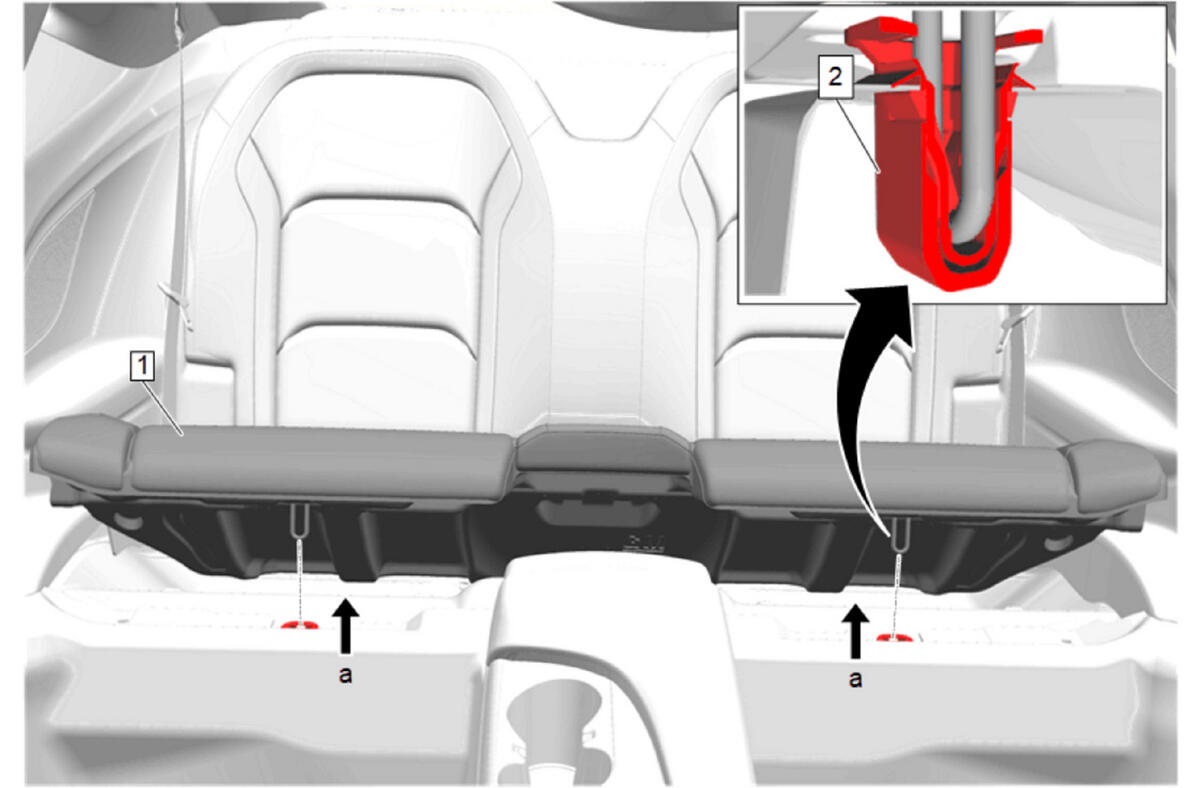

GM4140510Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Lift up on the front of the seat cushion to disengage the cushion from the floor retainers.
  2. Push down on the rear of the seat to unhook the cushion wire from the lower cross bar hinges.
