Sunshade Replacement (Coupe)

Courtesy of GENERAL MOTORS COMPANY

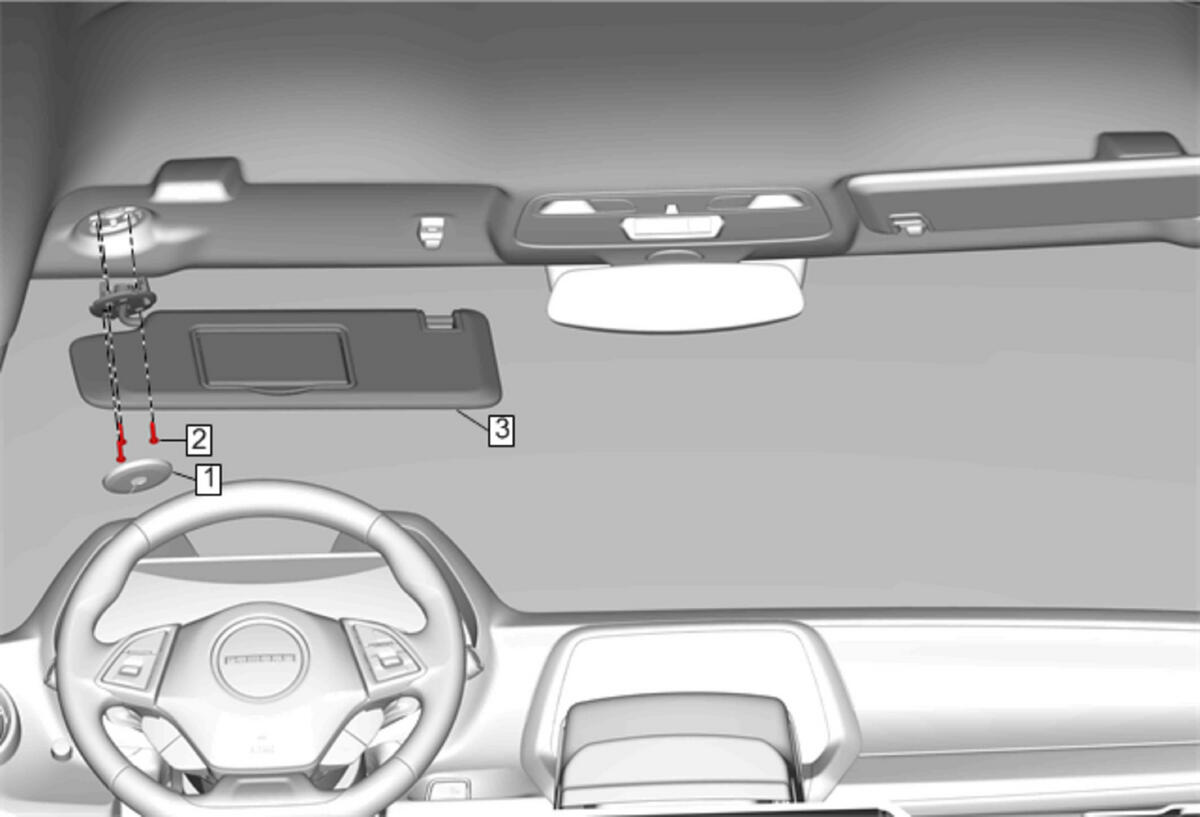

Callout	Component Name
Preliminary Procedure Lower the front portion of the headliner to access the sunshade electrical connector and sunshade retainer. Refer to Headlining Trim Panel Replacement
1	Sunshade Support Bolt Cover
2	Sunshade Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Sunshade Procedure Squeeze the tabs at the base of the sunshade assembly to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered. Disconnect the electrical connector, if equipped. Release the retainer attaching the sunshade to the headliner assembly.
