Rear Compartment Lid Inner Panel Trim Replacement

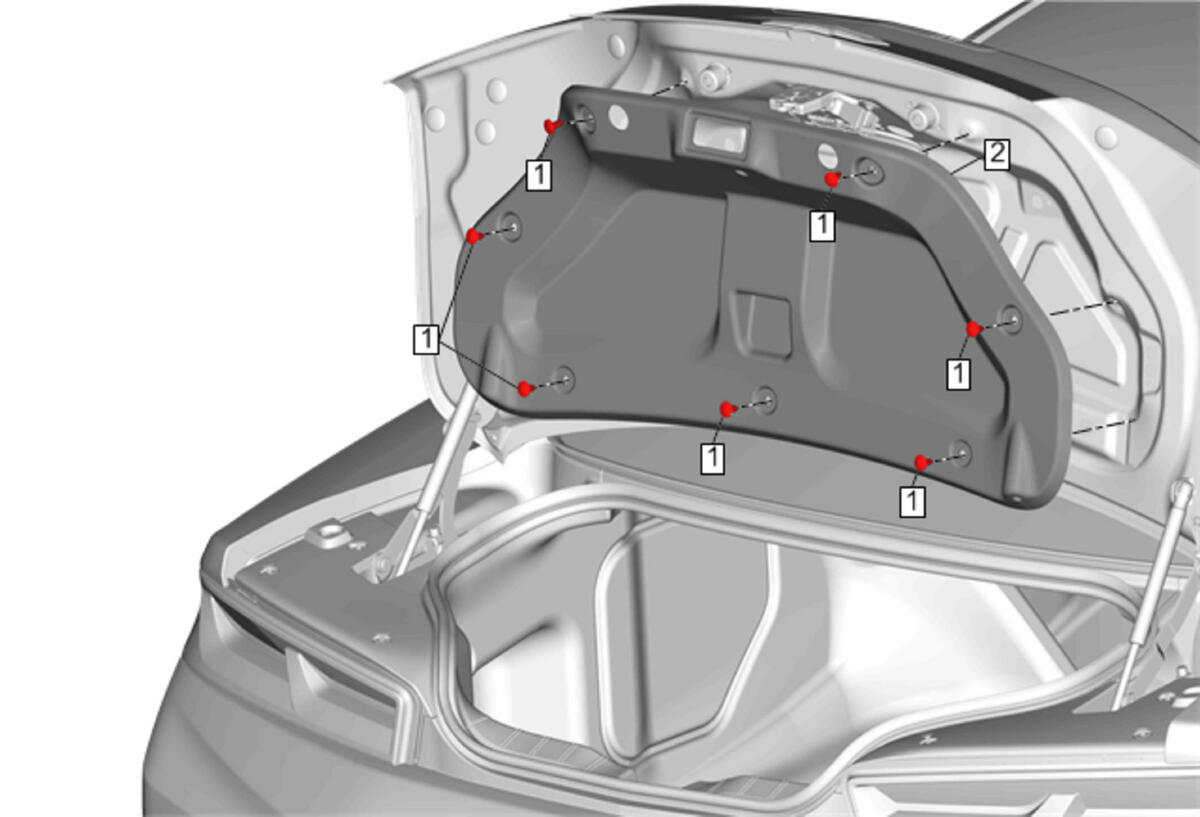

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Lid Latch Cover Replacement |
|
| 1 | Rear Compartment Lid Inner Panel Trim Retainer [7x] |
| 2 | Rear Compartment Lid Inner Panel Trim Procedure Use a flat-bladed plastic tool to remove the push-in retainers.
NOTE:
Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim. |
