Front Side Door Weatherstrip Replacement - Body Side (Convertible)

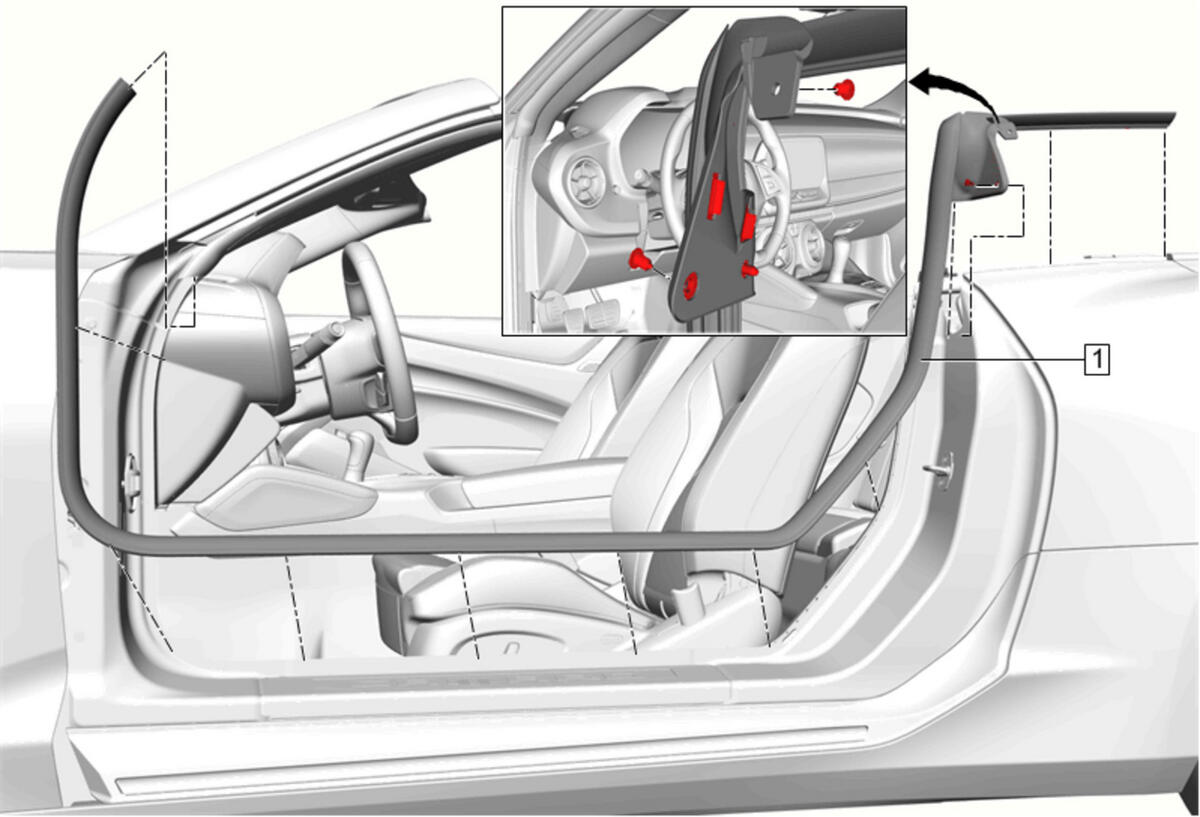

GM4335747Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Quarter Upper Trim Panel Replacement
1 Front Side Door Weatherstrip

Procedure

  1. Disengage/engage the weatherstrip retainers at the upper quarter panel.
  2. Installing the weatherstrip, starting at the base of the quarter window and lock pillar. Work the weatherstrip clockwise around the door ring seating the weatherstrip on the pinch weld flange. Ensure the forward portion of the weatherstrip is tucked under the windshield frame weatherstrip.
