Front Side Door Replacement

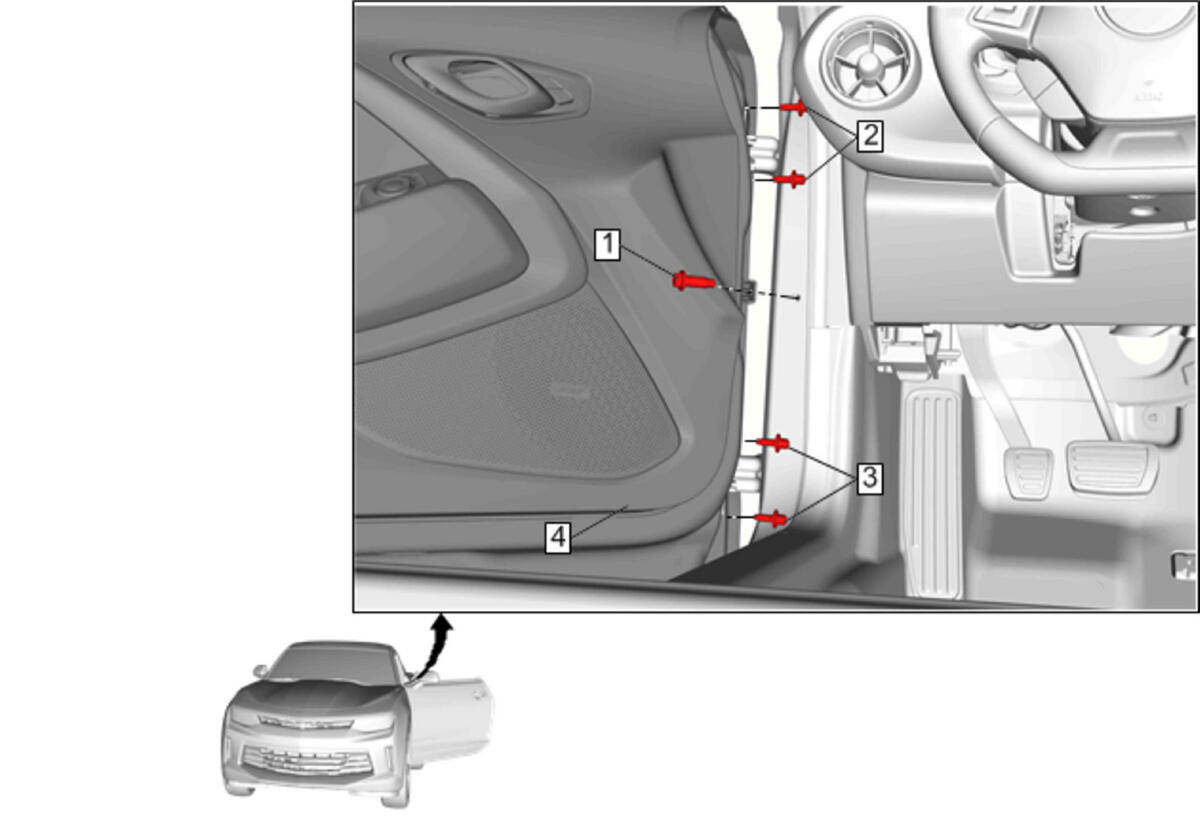

GM4193765Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Apply masking tape to the fender and door edges.
  2. Disconnect the electrical connector.
  3. Support the door before removing the hinge bolts.
1 Front Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front Side Door Upper Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
3 Front Side Door Lower Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
4 Front Side Door

Procedure

  1. With the aid of an assistant, remove the door.
  2. When replacing the door it is necessary to transfer all of the internal components.
  3. Front Side Door Adjustment
