Repair Instructions
>>
Turn Signal Bulb Replacement - Right Side
Turn Signal Bulb Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

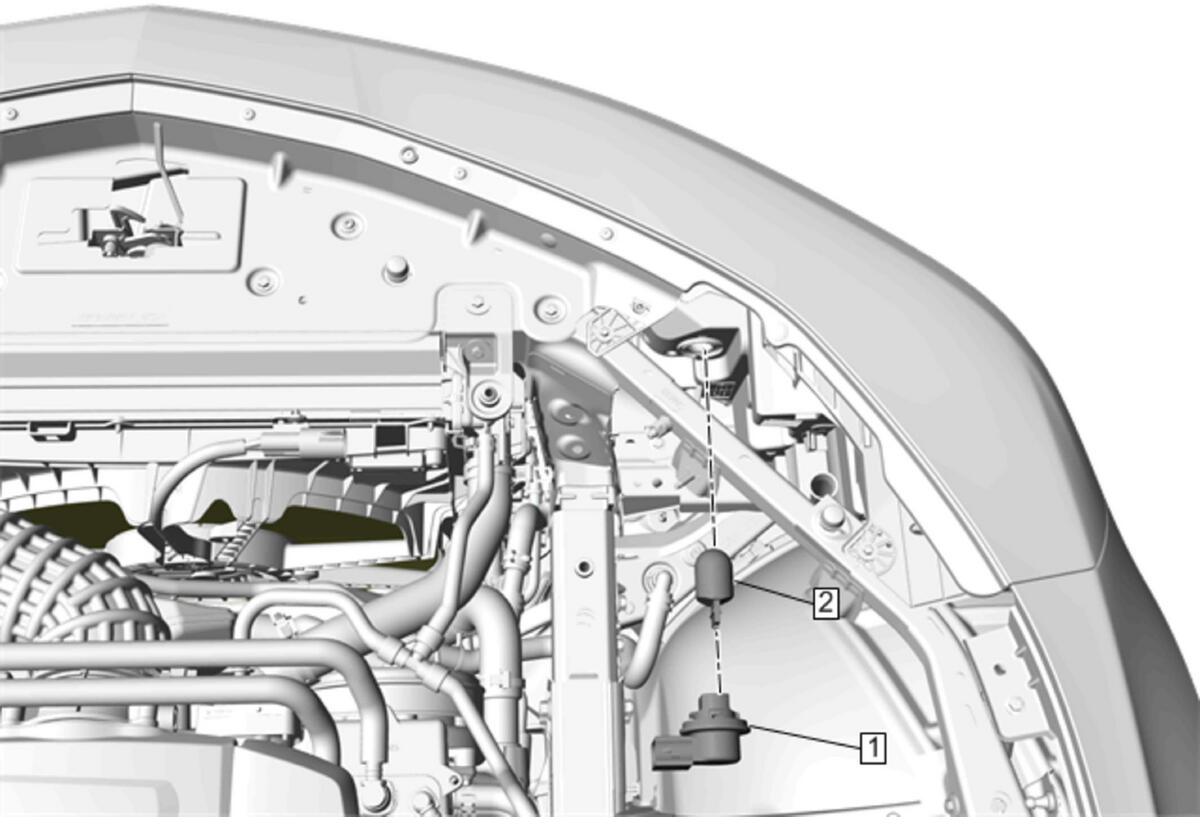

Callout
Component Name
1
Front Turn Signal Lamp Socket
Procedure
Rotate counterclockwise and pull from the headlamp.
2
Front Turn Signal Lamp Bulb
Procedure
Pull the turn signal lamp bulb straight out of the socket.
