Turn Signal Bulb Replacement - Left Side

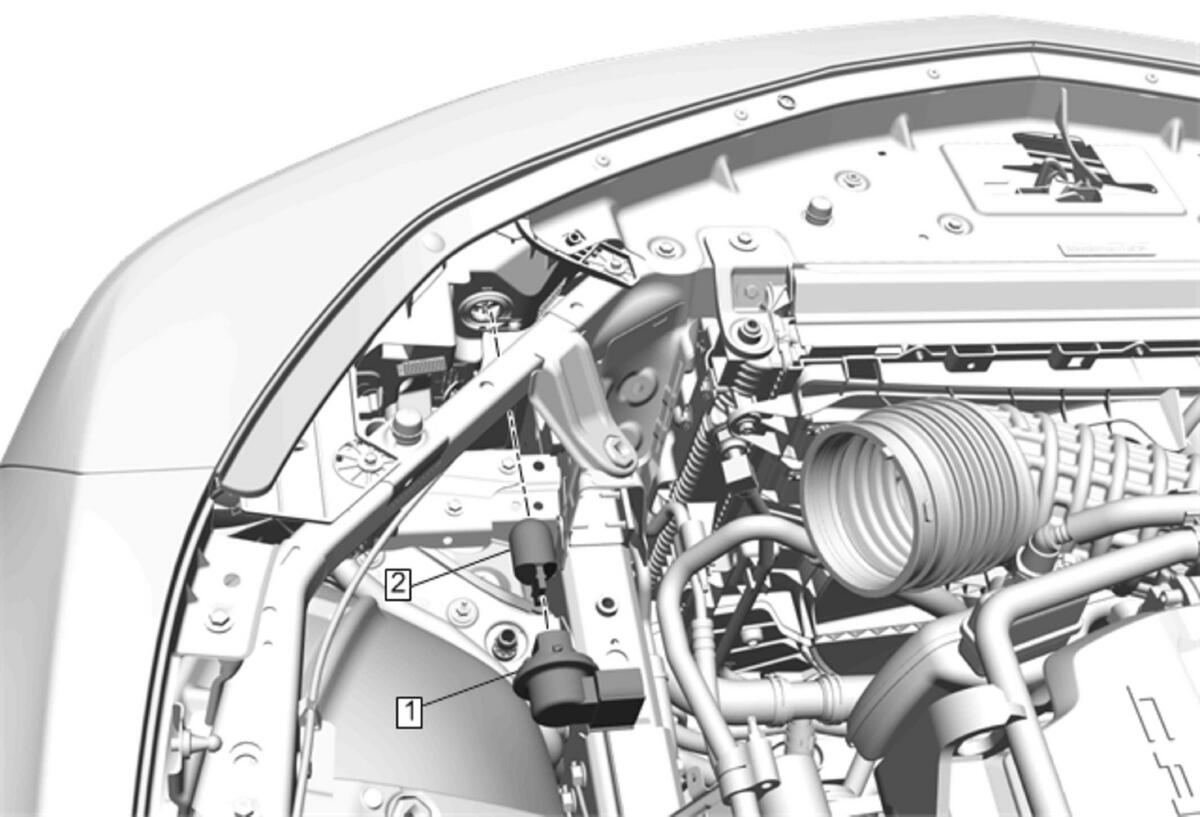

GM4175168Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Assembly Replacement (LT1) , or Air Cleaner Assembly Replacement (LT4)
1 Front Turn Signal Lamp Socket
Procedure
Rotate counterclockwise and pull from the headlamp.
2 Front Turn Signal Lamp Bulb
Procedure
Pull the turn signal lamp bulb straight out of the socket.
