Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement

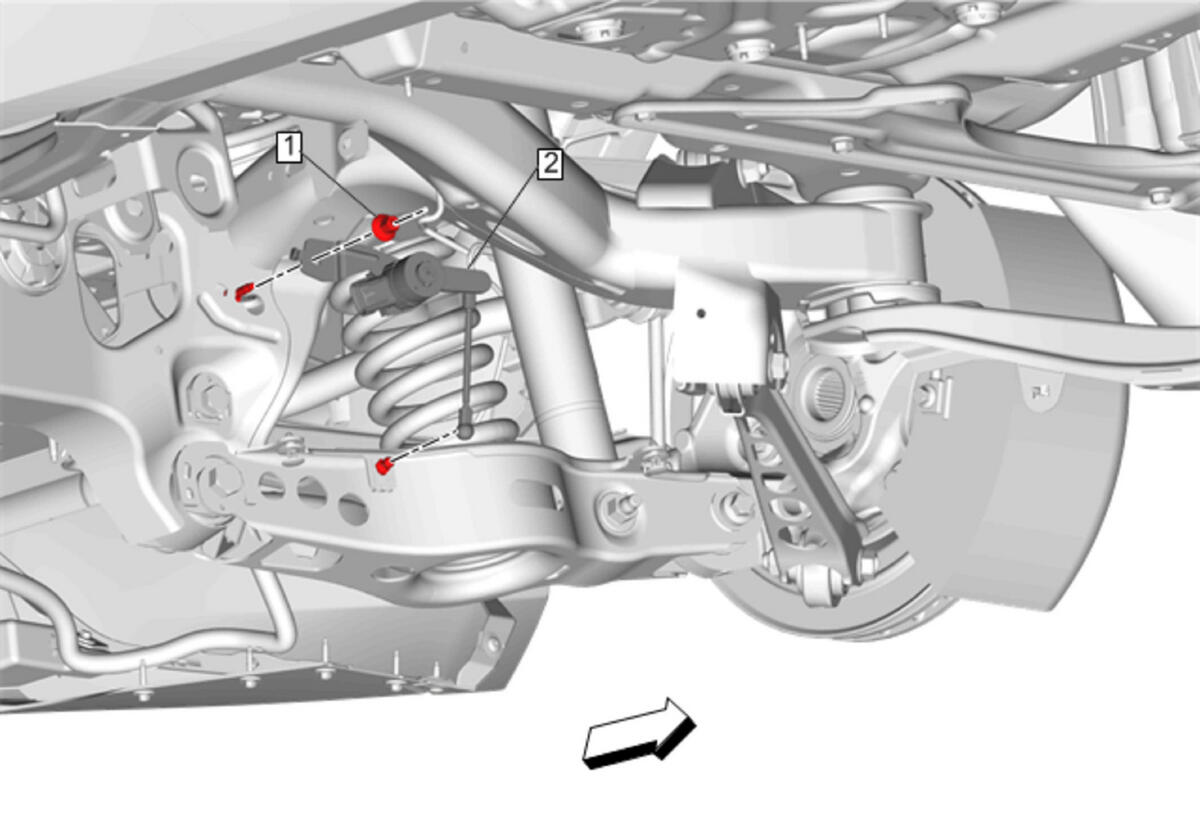

GM4176209

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Suspension Lower Control Arm Cover Replacement

1

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
12 N.m (106 lb in)

2

Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Procedure

Disconnect the electrical connector.
Using an appropriate tool, separate the ball and socket.
Using a hammer, gently tap on the sensor stud to disengage the splines on the stud.
Remove the rear suspension automatic forward lighting leveling position sensor from the keyhole slot.
