Rear License Plate Lamp Replacement

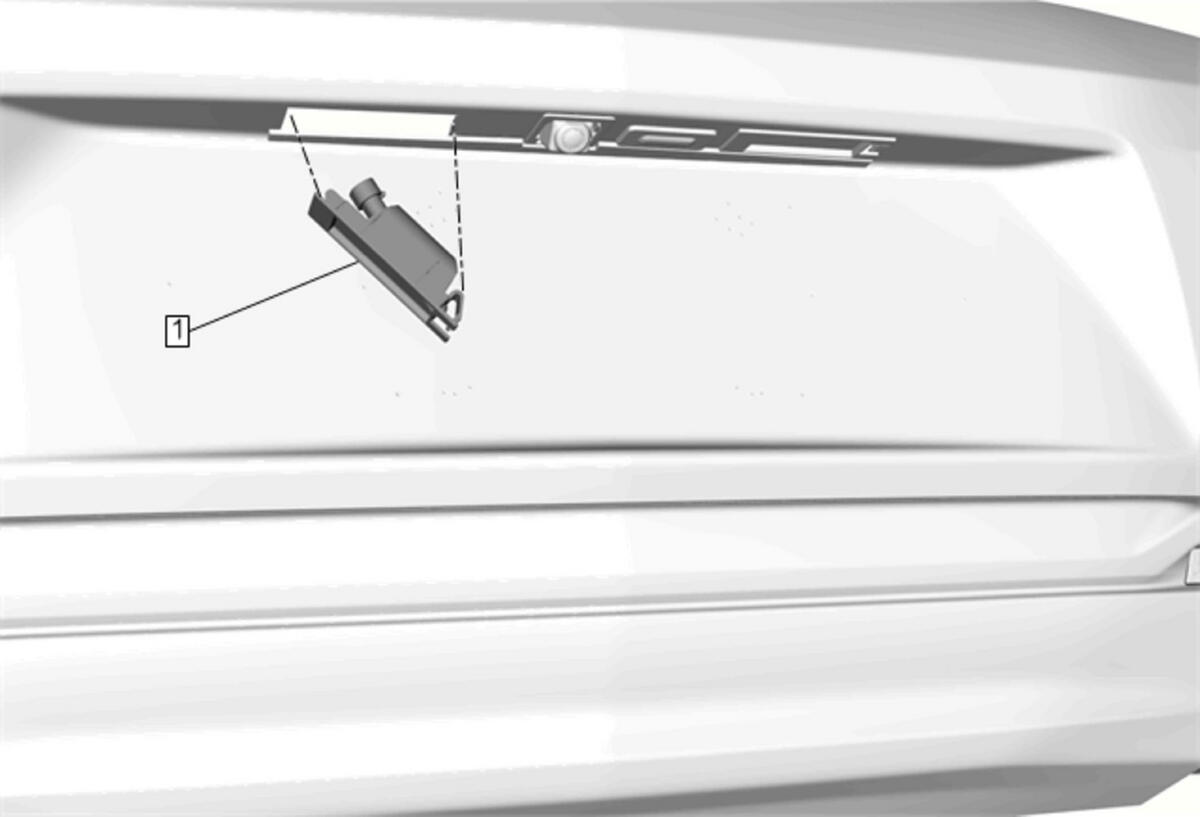

GM4180484Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear License Plate Lamp

Procedure

  1. Using a small flat-bladed tool, depress the inner license plate lamp tab and rotate downward to remove the lamp from the rear bumper fascia.
  2. Disconnect the electrical connector.
