Rear Fascia Auxiliary Signal Lamp Replacement

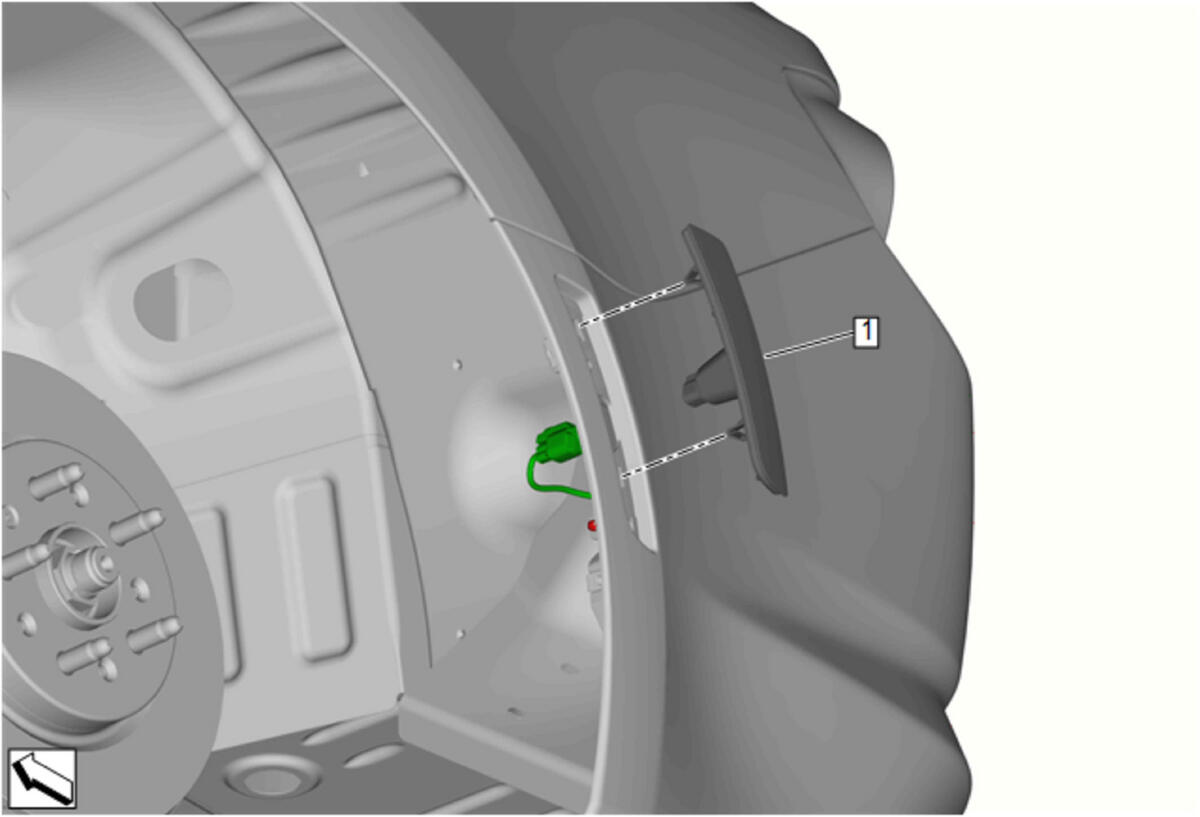

GM5084854Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Wheelhouse Liner Replacement , or Rear Wheelhouse Liner Replacement (ZL1)
  2. Disconnect the electrical connector.
1 Rear Fascia Auxiliary Signal Lamp

Procedure

  1. Compress the upper and lower clips and pull from the rear bumper fascia.
  2. Transfer components as necessary.
