Headlamp LED Driver Module Replacement

Courtesy of GENERAL MOTORS COMPANY

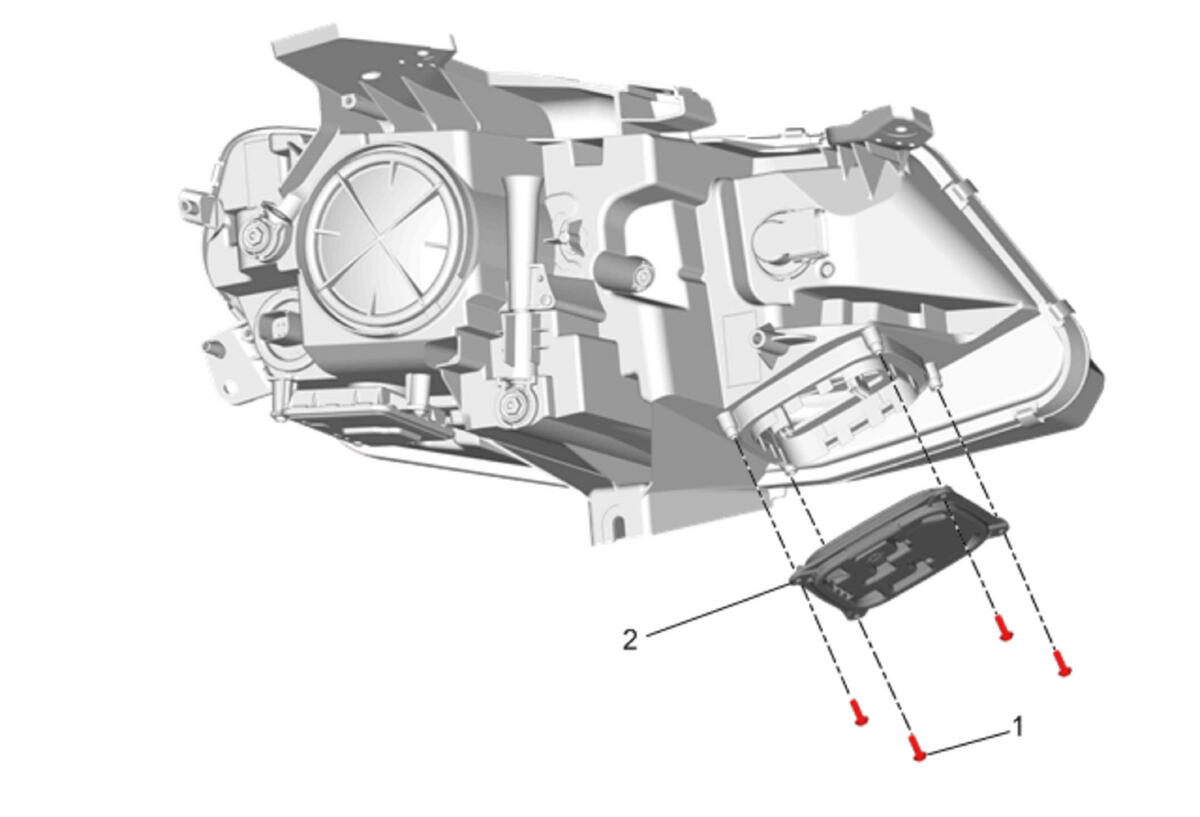

Callout	Component Name
Preliminary Procedure  Front Headlamp Replacement (LED, Uplevel) , or Front Headlamp Replacement (LED, Base)
1	Headlamp LED Driver Module Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Headlamp LED Driver Module
