Hazard Warning Switch Replacement

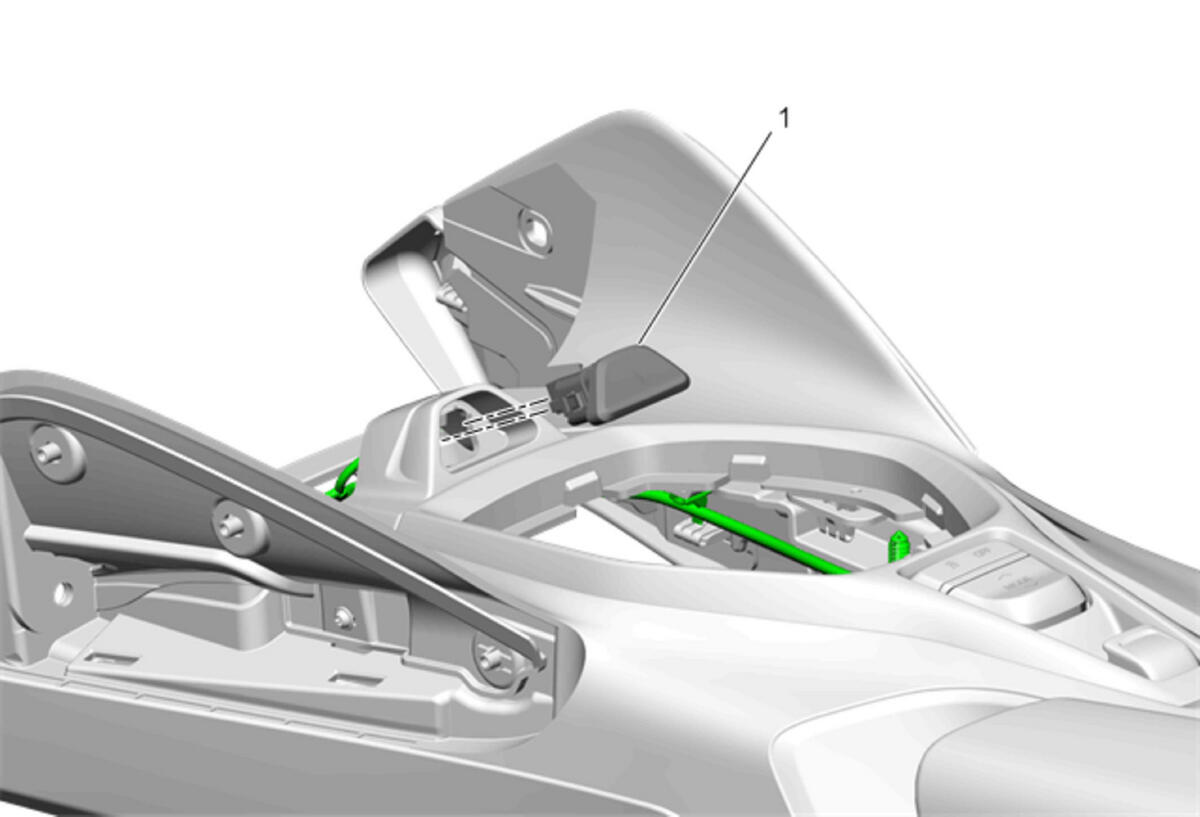

GM4199718Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Replacement
1 Hazard Warning Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the tabs and remove the switch.
