Front Suspension Automatic Forward Lighting Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

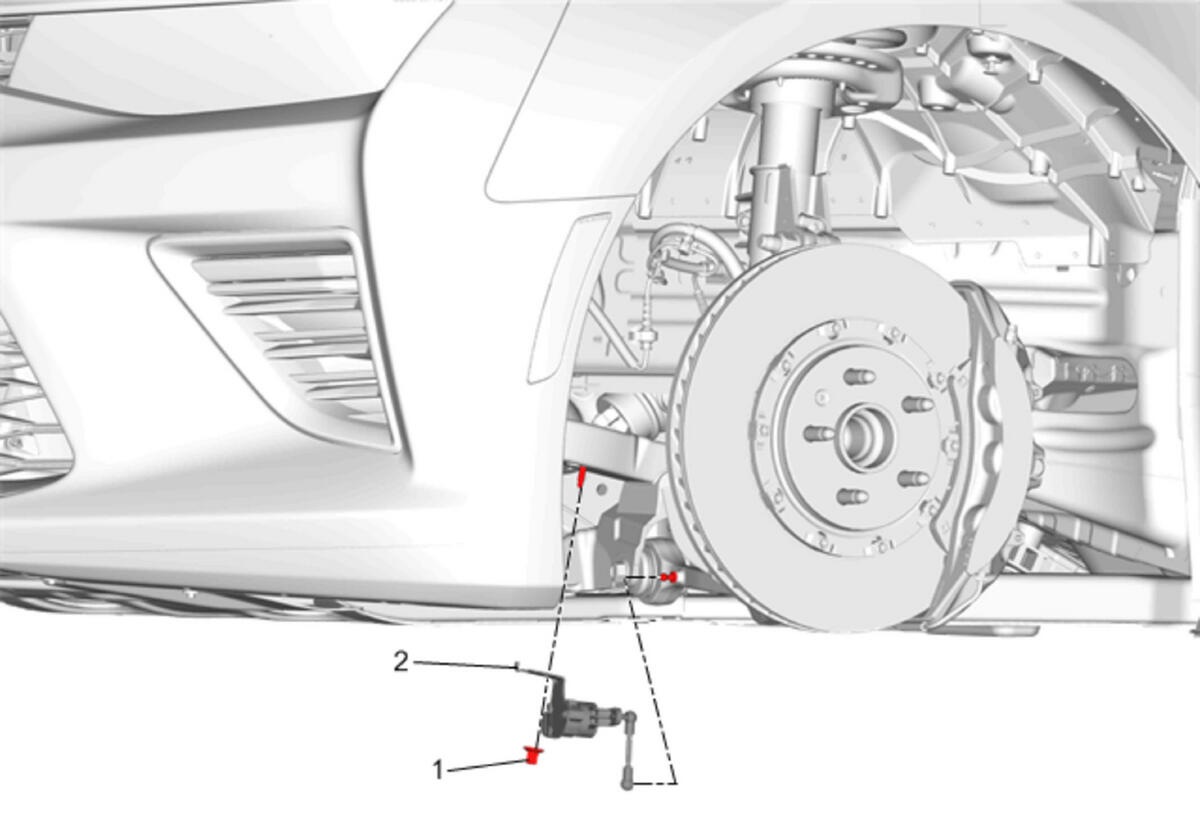

Callout	Component Name
Preliminary Procedure Front Wheelhouse Splash Shield Replacement
1	Front Suspension Automatic Forward Lighting Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the electrical connector. Using an appropriate tool, separate the ball and socket.

Callout

Component Name

Front Suspension Automatic Forward Lighting Position Sensor Nut

CAUTION:

Tighten
12 N.m (106 lb in)

Front Suspension Automatic Forward Lighting Position Sensor

Procedure
