Front Side Marker Lamp Bulb Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) Disconnect the electrical connector.

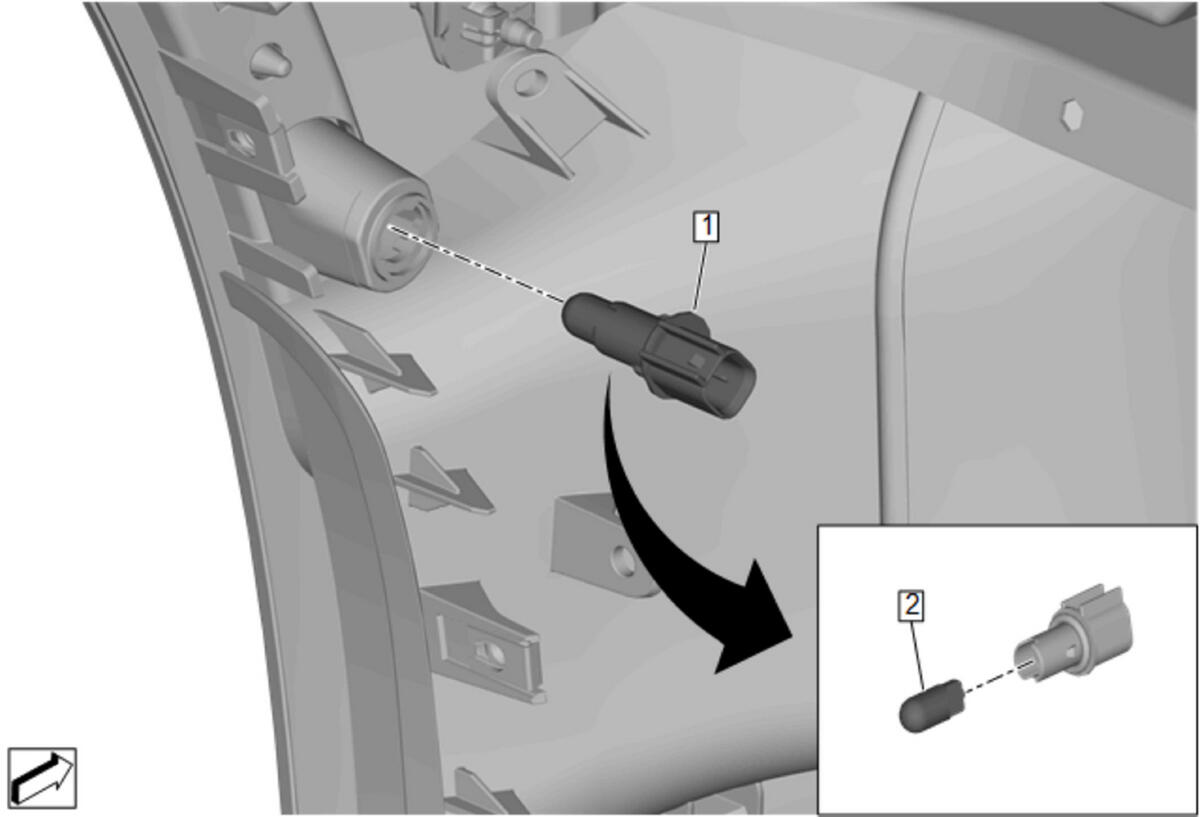

1	Front Side Marker Lamp Socket Procedure Rotate counterclockwise and pull from the front side marker lamp.
2	Front Side Marker Lamp Bulb Procedure Pull the front side marker lamp bulb straight out of the socket.

Callout

Component Name

Preliminary Procedures

Front Side Marker Lamp Socket
Procedure
Rotate counterclockwise and pull from the front side marker lamp.

Front Side Marker Lamp Bulb
Procedure
Pull the front side marker lamp bulb straight out of the socket.
