Front Side Door Inside Handle Illumination Lamp Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement

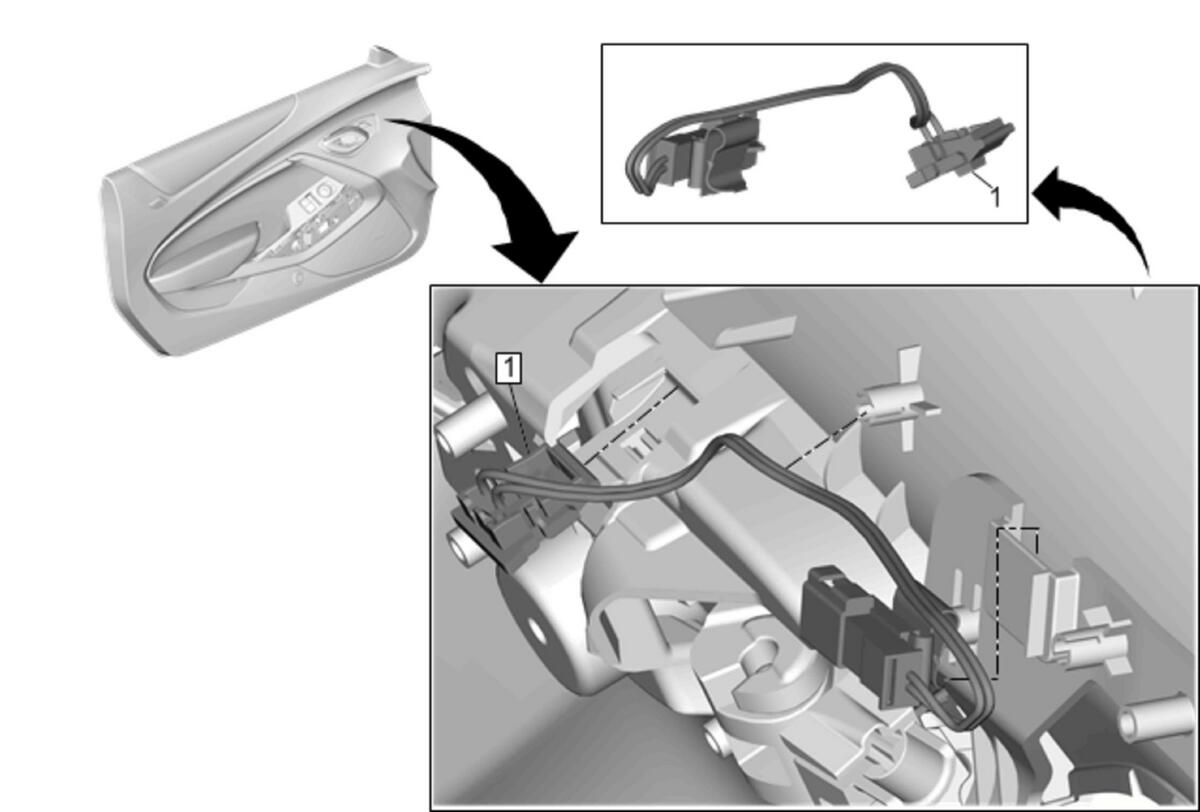

1	Front Side Door Inside Handle Illumination Lamp Procedure Disconnect the electrical connector. Unsnap lamp from the trim panel tabs. Unhook lamp from the trim panel by lifting upward.

Callout

Component Name

Front Side Door Inside Handle Illumination Lamp

Procedure
