Front Floor Console Flood Lamp Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Roof Console Replacement

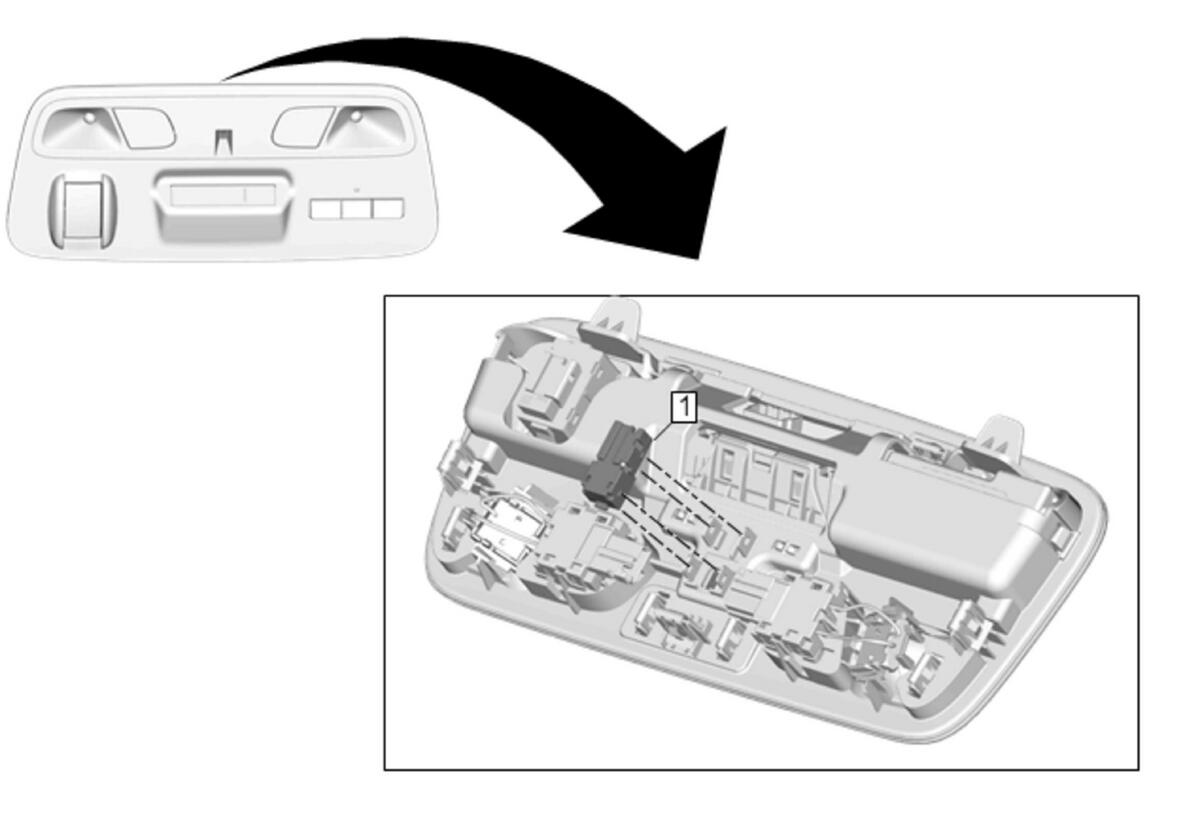

1	Front Floor Console Flood Lamp Procedure Use the appropriate tool to depress the tabs and remove the switch from the underside of the roof console. Disconnect the electrical connector.

Callout

Component Name

Front Floor Console Flood Lamp

Procedure

Use the appropriate tool to depress the tabs and remove the switch from the underside of the roof console.
Disconnect the electrical connector.
