Daytime Running Lamp Replacement (ZL1)

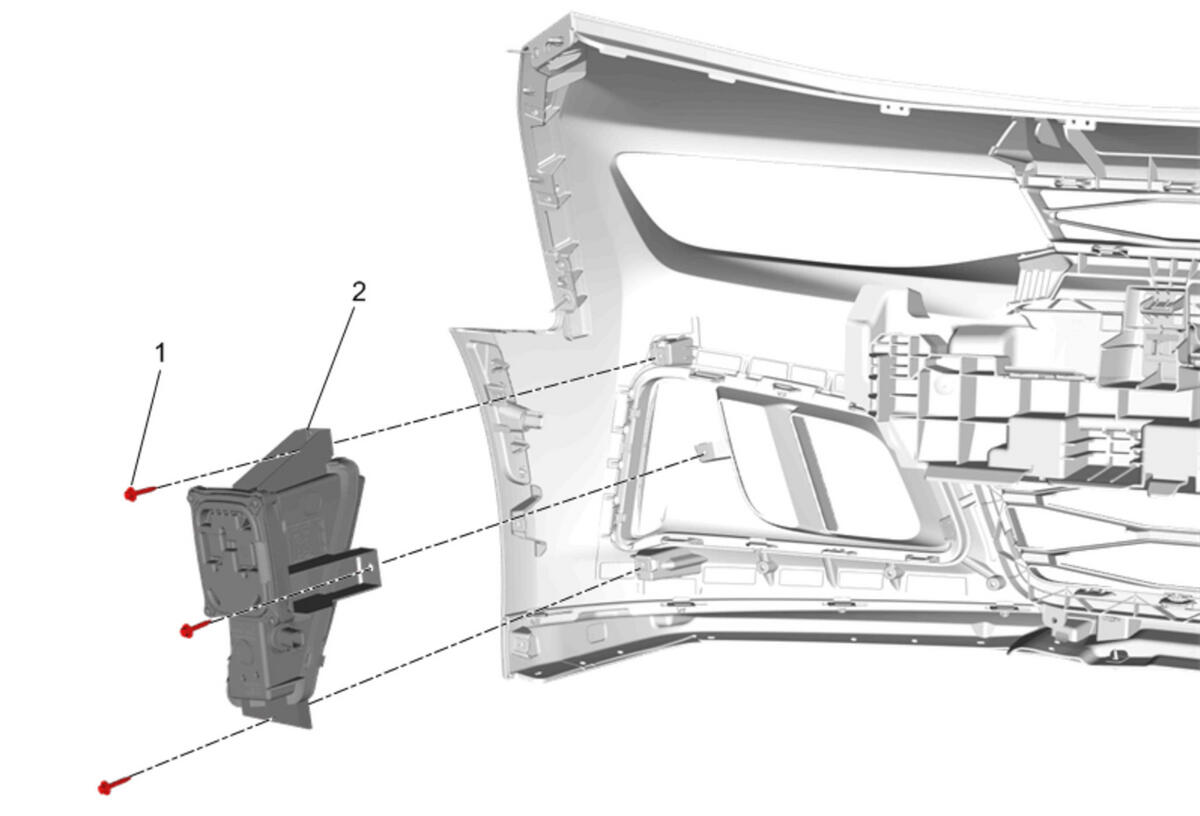

GM4539644Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement (ZL1)
  2. Disconnect the electrical connector.
  3. Remove the wiring harness clips.
1 Daytime Running Lamp Screw [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Daytime Running Lamp
