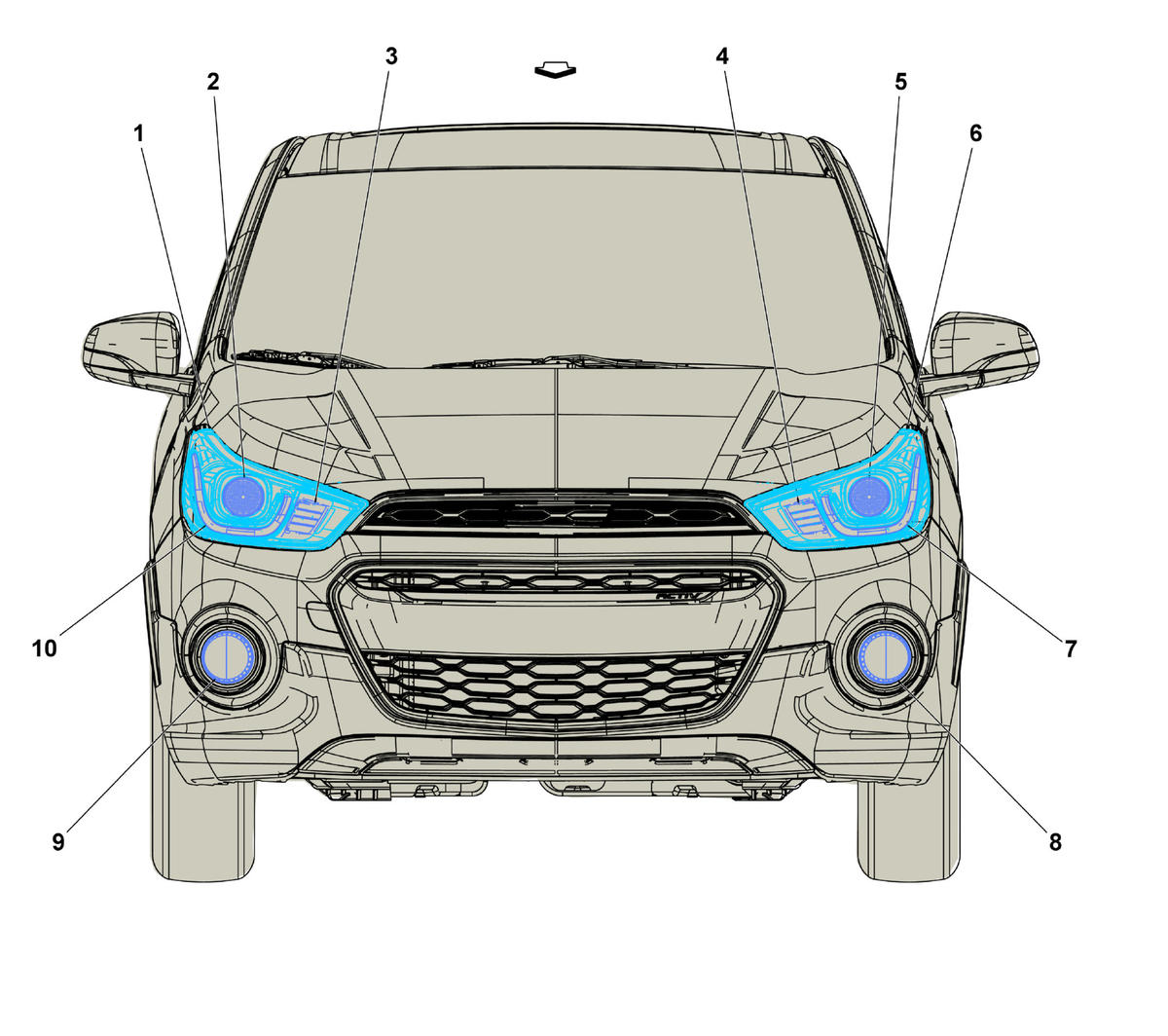

Front of the Vehicle Components (SBV+T3U)

WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (SBV+WJY+MCX) , or E13RA Headlamp Assembly - Right (SBW+T3N+MAH/MBC) , or E13RA Headlamp Assembly - Right (SBW+T3N+TR6-MAH/MBC/WJY) , or E13RA Headlamp Assembly - Right (SBW+T7E+MAH/MBC)
2. E4H Headlamp - Right Low Beam
3. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (-TUJ)
4. E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (-TUJ)
5. E4G Headlamp - Left Low Beam
6. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (SBV+WJY+MCX) , or E13LA Headlamp Assembly - Left (SBW+T3N+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T3N+TR6-MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T3N-TR6/MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T7E+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T7E-TR6/MAH/MBC/WJY)
7. E4AC Park/Daytime Running Lamp - Left E4AC Park/Daytime Running Lamp - Left (SBW+T3N) , or E4AC Park/Daytime Running Lamp - Left (SBW+T7E)
8. E29LF Fog Lamp - Left Front (T87) E29LF Fog Lamp - Left Front (T3U)
9. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front (T3U)
10. E4AD Park/Daytime Running Lamp - Right E4AD Park/Daytime Running Lamp - Right (SBW+T3N) , or E4AD Park/Daytime Running Lamp - Right (SBW+T7E)
