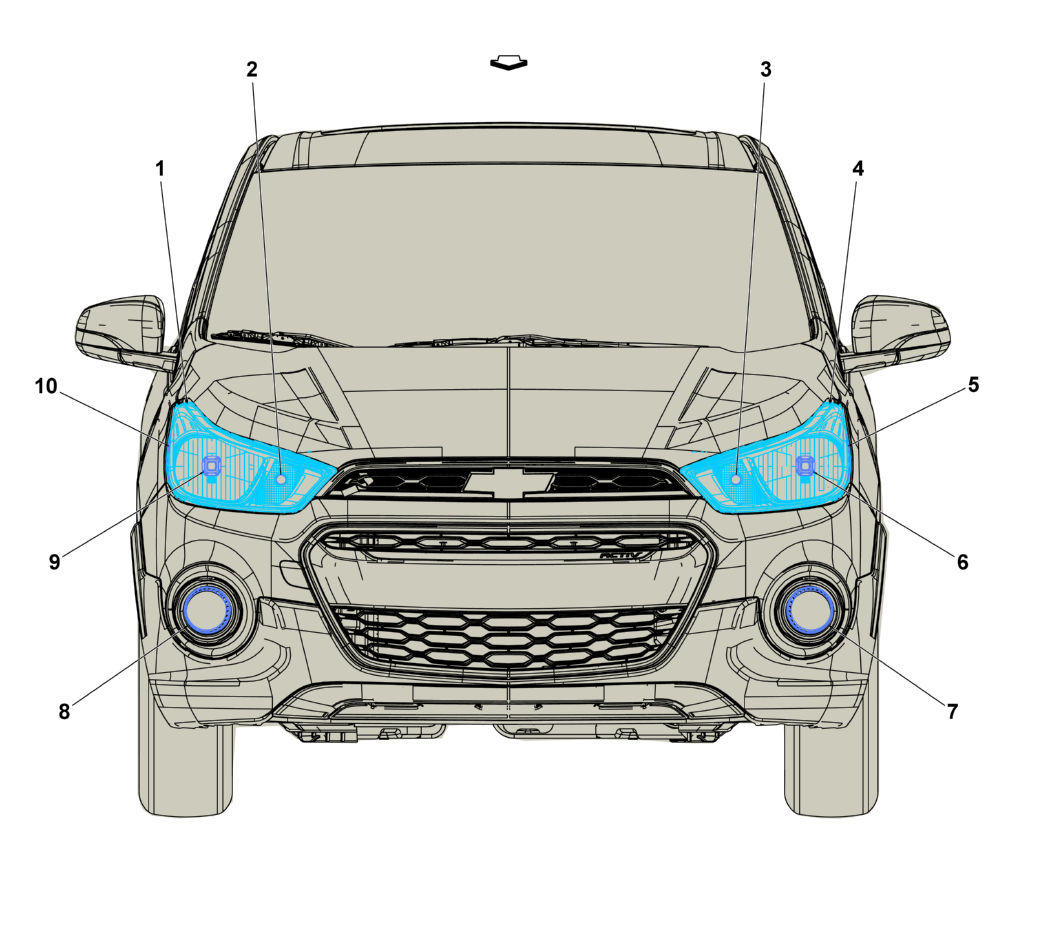

Front of the Vehicle Components (SBM+T3U)

WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (SBV+WJY+MCX) , or E13RA Headlamp Assembly - Right (SBW+T3N+MAH/MBC) , or E13RA Headlamp Assembly - Right (SBW+T3N+TR6-MAH/MBC/WJY) , or E13RA Headlamp Assembly - Right (SBW+T7E+MAH/MBC)
2. E4P Park/Turn Signal Lamp - Right
3. E4N Park/Turn Signal Lamp - Left
4. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (SBV+WJY+MCX) , or E13LA Headlamp Assembly - Left (SBW+T3N+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T3N+TR6-MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T3N-TR6/MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T7E+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T7E-TR6/MAH/MBC/WJY)
5. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front (SBM+T3W+WJY+(MAH/MBC))
6. E13L Headlamp - Left E13L Headlamp - Left (SBM+T3W+WJY+(MAH/MBC)) , or E13L Headlamp - Left (SBM+TUJ)
7. E29LF Fog Lamp - Left Front (T87) E29LF Fog Lamp - Left Front (T3U)
8. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front (T3U)
9. E13R Headlamp - Right E13R Headlamp - Right (SBM+T3W+WJY+(MAH/MBC)) , or E13R Headlamp - Right (SBM+TUJ)
10. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front (SBM+T3W+WJY+(MAH/MBC))
