Behind the Instrument Panel Components (LHD)
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

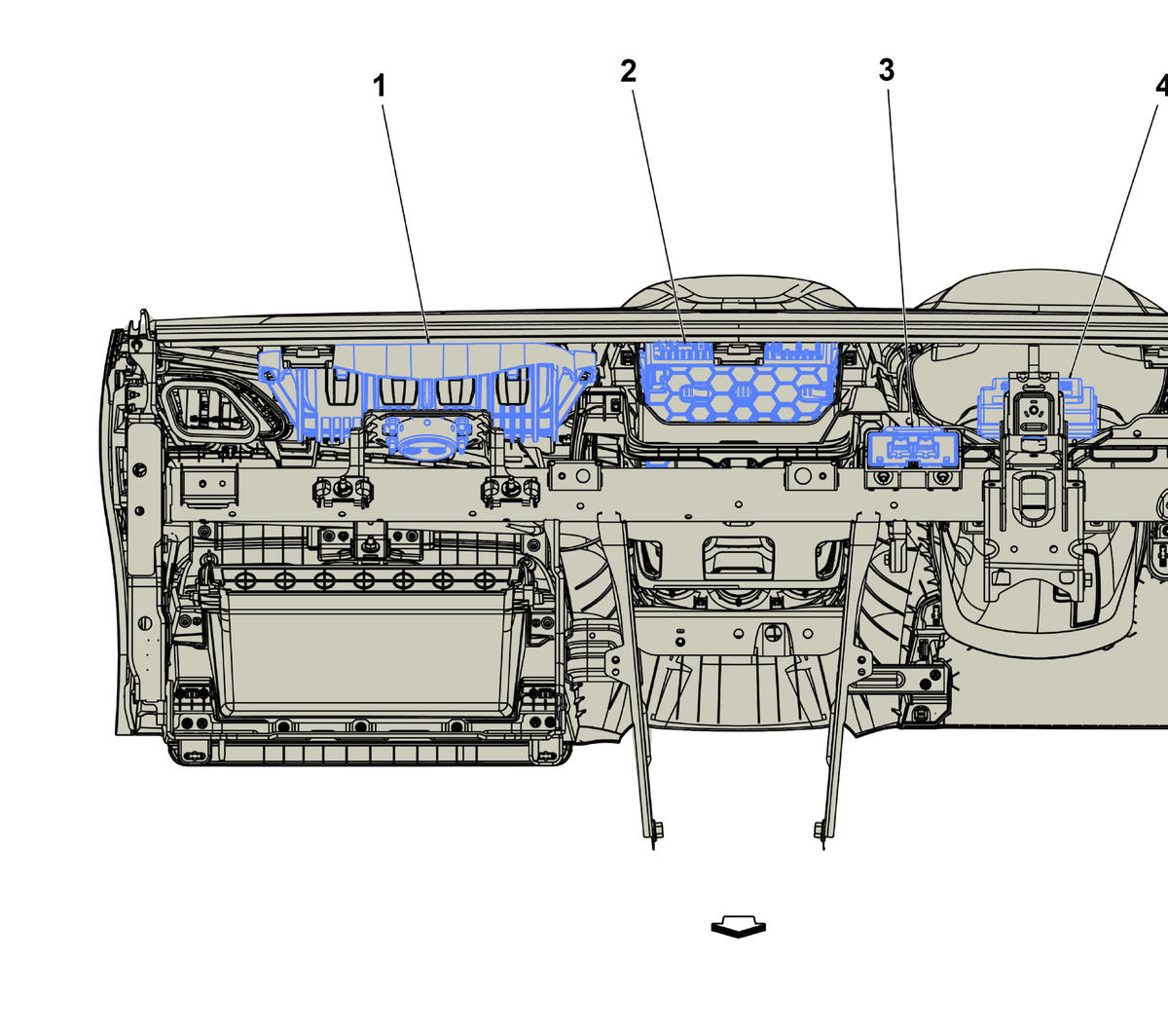

Behind the Instrument Panel Components (LHD)
| Items |
|---|
| 1. F101 Passenger Instrument Panel Air Bag (AK5/AYF) F101 Passenger Instrument Panel Air Bag (LHD+AK5/AJ7/AYC) , or F101 Passenger Instrument Panel Air Bag X1 (LHD+AYF) , or F101 Passenger Instrument Panel Air Bag X2 (LHD+AYF) |
| 2. A11 Radio (IP0/IP1) A11 Radio X1 (IP0/IP1)A11 Radio X3 (IP0/IP1)A11 Radio X4 (IP0/IP1) |
| 3. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 |
| 4. K84 Keyless Entry Control Module (AVJ) K84 Keyless Entry Control Module X1 (AVJ) , or K84 Keyless Entry Control Module X2 (AVJ) |
