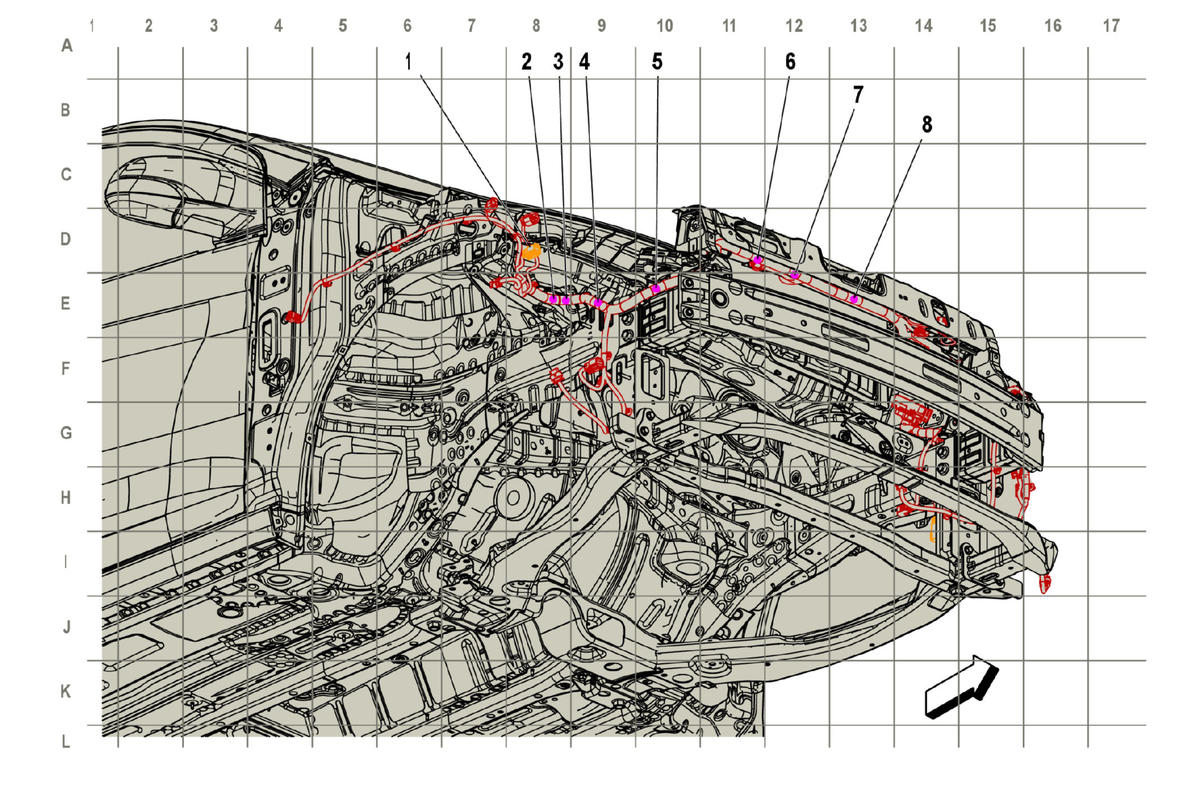

Forward Lamp Harness Routing - Right Side of the Engine Compartment
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X120 |
| 2. X121 Forward Lamp Harness to Lamp - Turn Harness (SBM+TUJ) X121 Forward Lamp Harness to Lamp - Turn Harness (SBM+T3W+WJY+(MAH/MBC)) |
| 3. J113 Forward Lamp Harness |
| 4. J114 Forward Lamp Harness |
| 5. J111 Forward Lamp Harness |
| 6. J112 Forward Lamp Harness |
| 7. J111 Forward Lamp Harness |
| 8. J196 Forward Lamp Harness |
| 9. J195 Forward Lamp Harness |
| 10. J109 Forward Lamp Harness |
