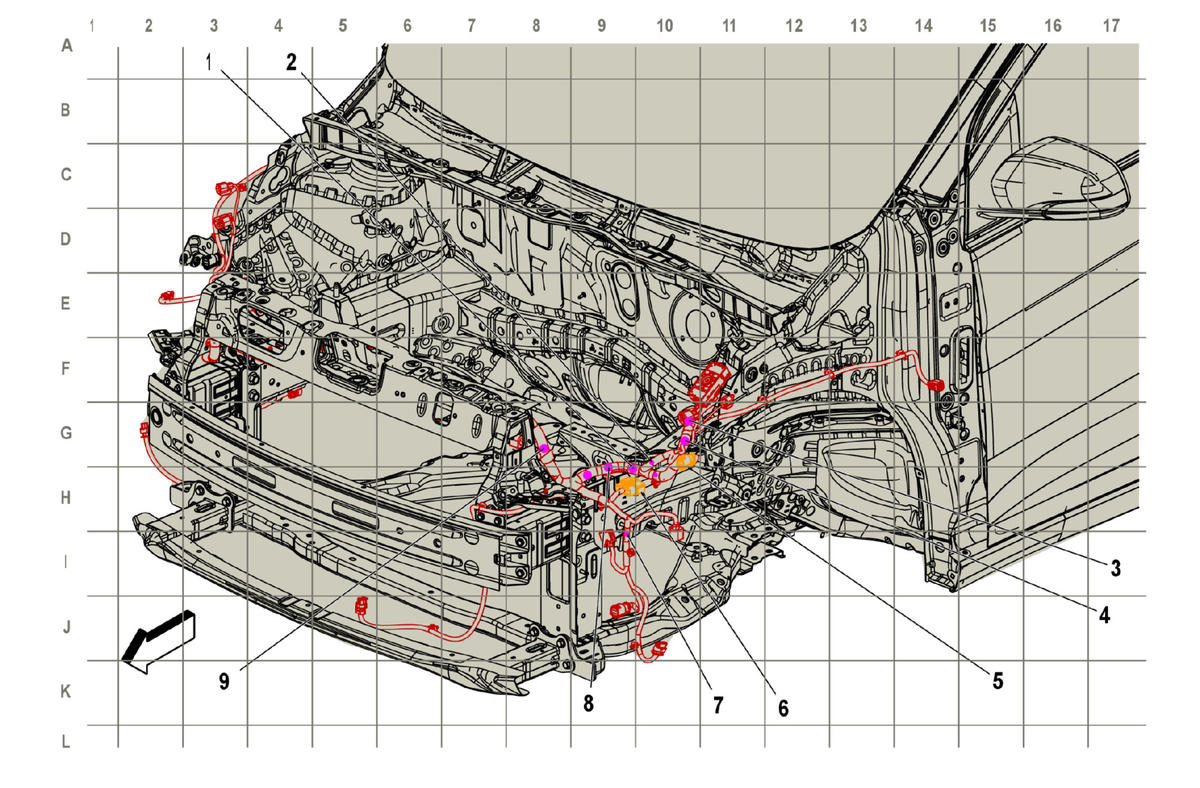

Forward Lamp Harness Routing - Left Side of the Engine Compartment
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J104 Forward Lamp Harness |
| 2. J102 Forward Lamp Harness |
| 3. J100 Forward Lamp Harness |
| 4. J101 Forward Lamp Harness |
| 5. X110 |
| 6. X111 Forward Lamp Harness to Lamp - Turn Harness (SBM+TUJ) X111 Forward Lamp Harness to Lamp - Turn Harness (SBM+T3W+WJY+MAH/MBC) |
| 7. J103 Forward Lamp Harness |
| 8. X105 Forward Lamp Harness to Body Harness X105 Forward Lamp Harness to Body Harness |
| 9. J107 Forward Lamp Harness |
| 10. J105 Forward Lamp Harness |
| 11. J106 Forward Lamp Harness |
| 12. J108 Forward Lamp Harness |
