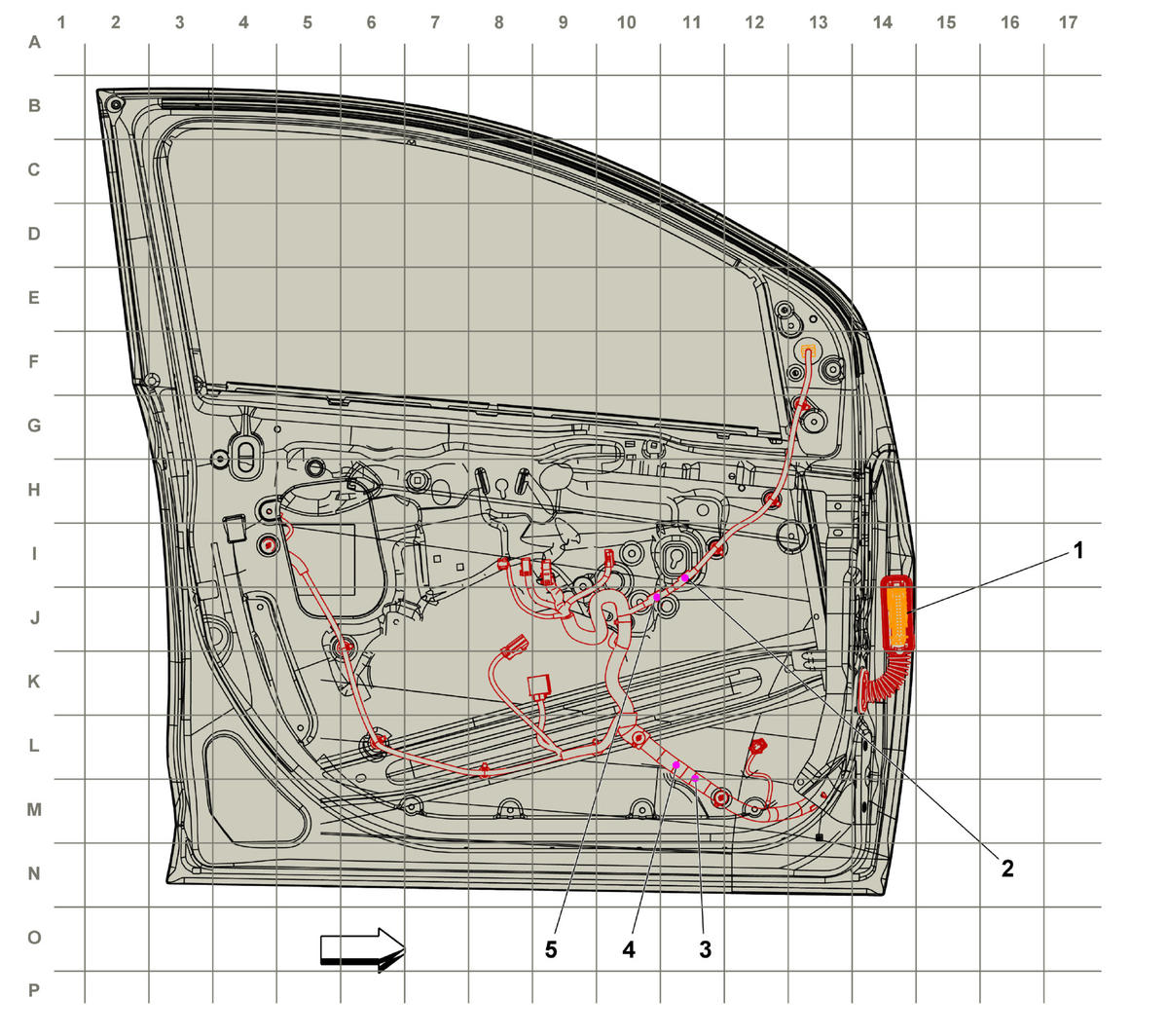

Driver Door Harness Routing (LHD)
WARNING: This page is about a different car, the 2019 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Item |
| 1. X500 Driver Door Harness to Body Harness |
| 2. J503 Driver Door Harness |
| 3. J500 Driver Door Harness |
| 4. J501 Driver Door Harness |
| 5. J502 Driver Door Harness |
